Description

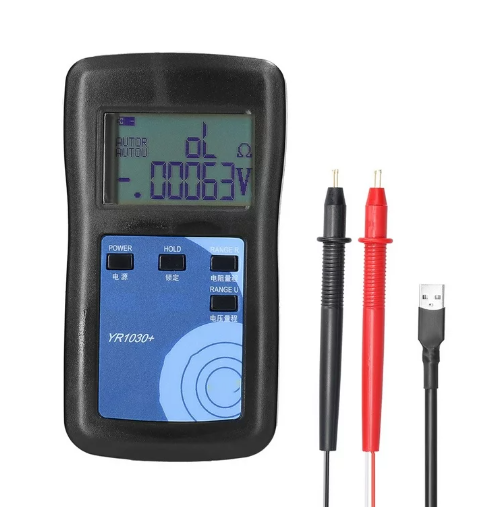

This is an instrument that is used to test the battery by measuring the voltage across it’s terminal together with it’s internal resistance. those parameters it displays on its screen help to analyse the life condition of the battery.
Features:
1. Voltage resistance with the screen at the same time measurement, measurement quickly and steadily.
The minimum resolution of up to 0.01 milliohms, easy to test large capacity, high discharge rate low resistance battery. Range can be 200 ohms, can be measured button batteries, 9V laminated battery and other low-capacity small current high internal resistance battery.
2. Voltage, internal resistance function, respectively, with manual automatic range function.Automatic range switch stable and fast, the measurement shows 4 times per second update,the basic can be locked in about 1S time range stable display. HOLD function to help you lock the display, more convenient reading.
3. Using dot matrix LCD screen.
Size font combination, which clearly shows the measurement results, but also display rich content. Chinese menu is rich in settings.
4.2 kinds of display mode.
Normal mode with the screen display resistance and voltage, sorting mode shows the internal resistance voltage and the level of battery classification and counting.
5. Has a three-level battery rating detection.
By setting the voltage resistance rating, the battery can be grouped.
6. Built-in lithium polymer rechargeable battery.
And more reserved for a standby power interface, can expand the larger capacity.
7. Built-in charge management circuit.
And can be set to 200mA and 400mA two charging current.
8. Energy saving function.
Can be set 5 – 60min shutdown delay. No operation and input, the ultra-delayed automatic shutdown. Can be set to 5-30min delay into low power mode
