Description

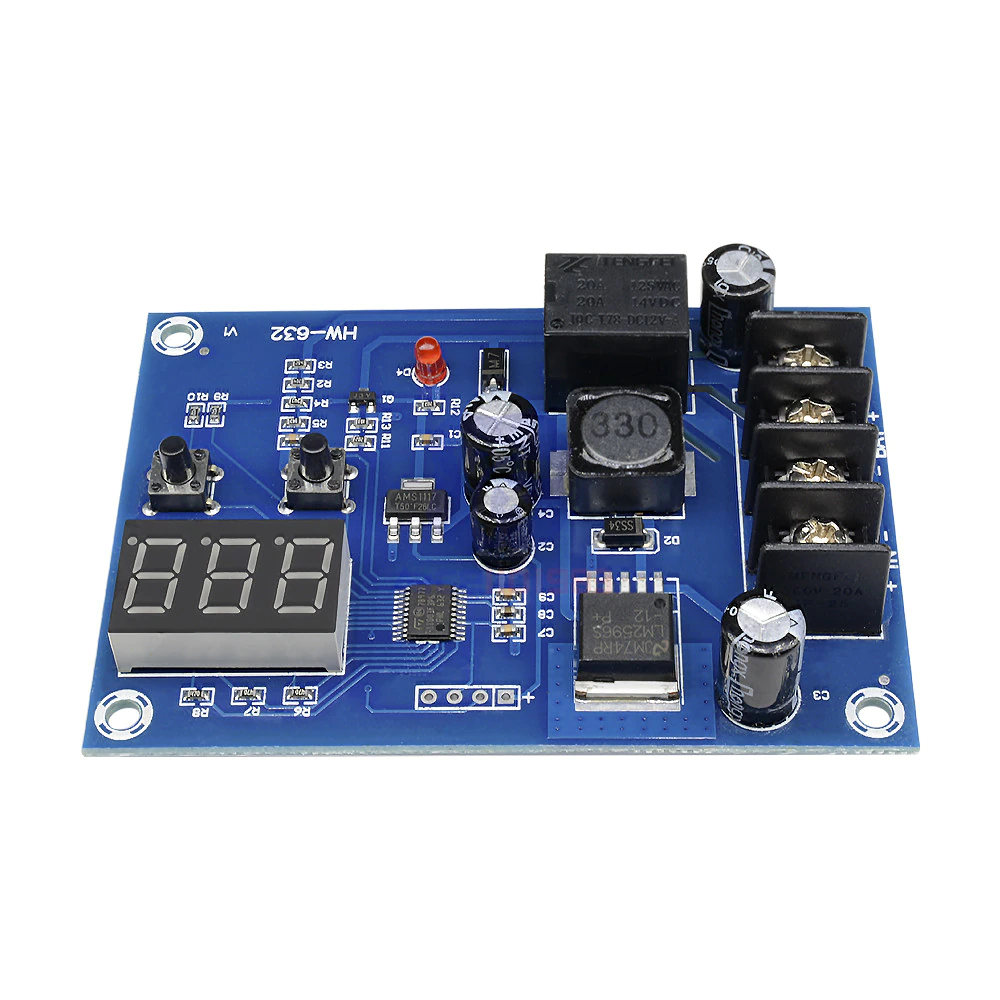

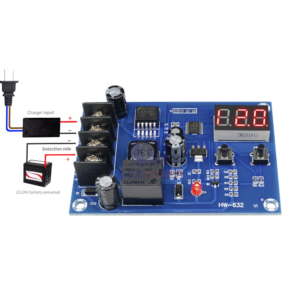

The XH-M603 is a PCB control module used to charge lithium batteries, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion, and polymer. You can assemble your own Lithium battery charger by using this charger module. The 12v-24v Battery Protection Module can also be used for solar panels. The XH-M603 Module is perfect for building a battery charging station, offering a range of protection features and easy-to-set min/max charging voltages. As soon as the desired battery float voltage is reached, the charging circuit is disconnected.
Features
- Model: XH-M603
- Input Voltage: DC 10-30V
- Display Precision: 0.1V
- Control Precision: 0.1V
- Output Type: direct output
- Voltage Tolerance: +/-0.1V
- Application Fields: 12-24V storage battery

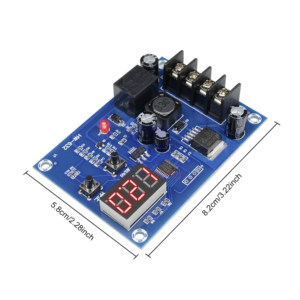

- Size: 82*58*18mm
Using Method
- Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
- Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
- Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
Package includes: 1×XH-M603 Charging Control Module
