Description

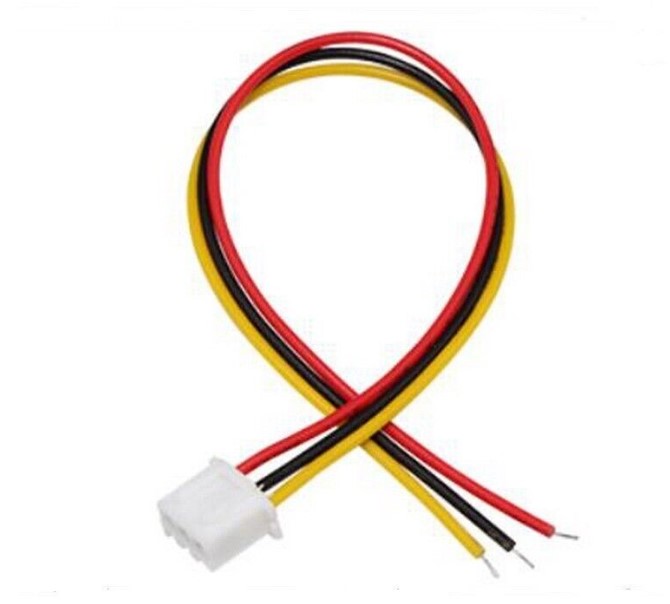

This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. it can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
specifications:
- Current Rating: 10A AC/DC (AWG #16)
- Voltsge rating: 250 V AC/DC
- Temperature range: -25oC to +85oC
(including temperature rise in appliying electrical current)
- Contact resistance: intial value/ 10m Ohm min
after environment tests/ 20m Ohm Max
- insulation resistance: 1000 M Ohm min
- withstanding voltage: 1500 VAC/minute
- Applicable wire: AWG #22 TP #16
- Applicable PC board thickness:1.6mm
