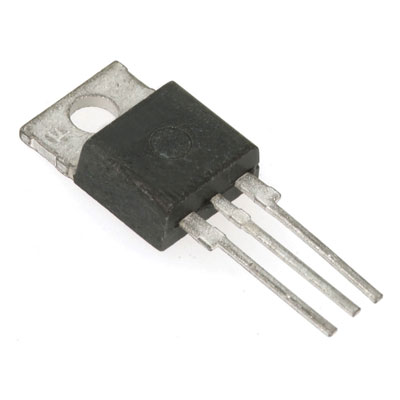

TIP42 PNP Bipolar Power Transistor TR21

Description

The Bipolar Power Transistor is designed for general purpose power amplifier and switching applications. The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices.

Features

Collector-Emitter Saturation Voltage – VCE(sat) = 1.5 V (Max) @ IC = 6.0 Adc
Collector-Emitter Sustaining Voltage -VCEO(sus) = 60 Vdc (min) – TIP41A, TIP42A
=80 Vdc (min) – TIP41B, TIP42B
=100 Vdc (min) – TIP41C, TIP42C
High Current Gain Bandwidth Product
fT = 3 MHz (min) @ IC = 500 mAdc
Compact TO-220 AB Package
These are Pb-Free Packages

Document:

Datasheet
