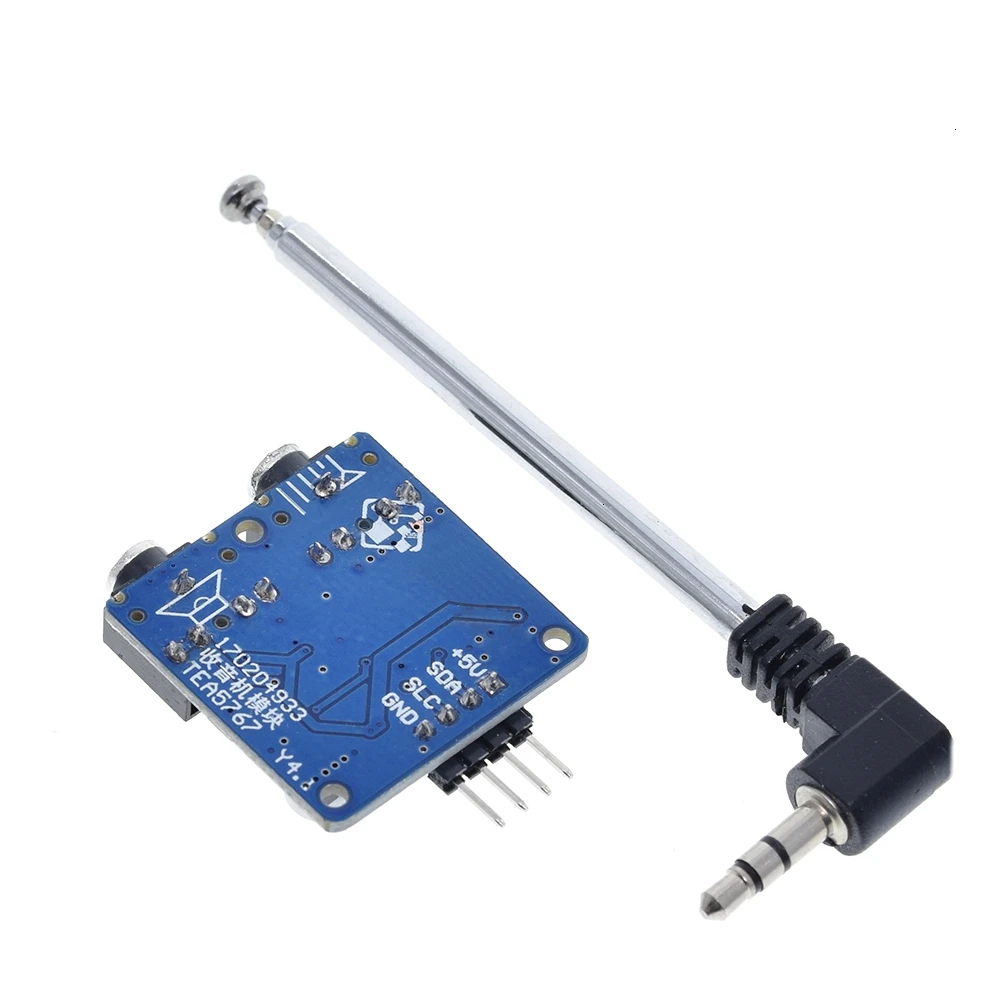

TEA5767 FM Stereo Radio Module for Arduino 76-108MHZ with Free Antenna Reverse Polarity Protection D

Description

The TEA5767 FM Stereo Radio Module is a versatile and user-friendly component that adds FM radio capabilities to your Arduino projects. This module operates within the FM frequency range of 76-108 MHz, making it suitable for worldwide use. It features a free antenna for improved signal reception, reverse polarity protection, and filtering sensors to ensure high-quality audio output.

Key Features

• Frequency Range: 76-108 MHz, covering the full FM broadcast band.
• Stereo Output: Delivers clear stereo audio, enhancing the listening experience.
• Antenna Included: Comes with a free antenna to ensure strong signal reception.
• Reverse Polarity Protection: Safeguard the module against incorrect power connections.
• Filtering Sensors: Integrated filters reduce noise and improve signal clarity.

Specifications

• Operating Voltage: Typically 3.3V or 5V (check specific module requirements)
• Communication Interface: I2C (uses SDA and SCL pins)
• Dimensions: Compact size suitable for integration into various projects
• Audio Output: Stereo (via 3.5mm jack or direct pin output)

Pin Configuration

The module typically has the following pins:

• GND: Ground
• VCC: Power supply (3.3V or 5V depending on the module specifications)
• SDA: I2C data line
• SCL: I2C clock line
• RCK: (Not always used) Clock input for the microcontroller
• RST: Reset pin (optional)

Connecting the Module to Arduino

Here’s how you can connect the TEA5767 module to an Arduino:

1. VCC to 3.3V or 5V: Connect the VCC pin of the module to the 3.3V or 5V pin on the Arduino (check the module’s specifications).
2. GND to GND: Connect the GND pin of the module to the GND pin on the Arduino.
3. SDA to A4: Connect the SDA pin of the module to the A4 pin on the Arduino (for I2C communication).
4. SCL to A5: Connect the SCL pin of the module to the A5 pin on the Arduino (for I2C communication).
5. RST (optional): If you want to use the reset functionality, connect the RST pin to a digital pin on the Arduino.

Arduino Code Example

To get started with the TEA5767 module, you can use the following Arduino code. This code initializes the module and scans for FM stations.

#include <Wire.h>

#include <TEA5767Radio.h>
TEA5767Radio radio = TEA5767Radio();
void setup() {
Serial.begin(9600);
Wire.begin();
radio.init();
Serial.println("TEA5767 FM Radio Module Test");
}
void loop() {
float frequency = 87.5;
radio.setFrequency(frequency);
delay(2000);
Serial.print("Tuned to frequency: ");
Serial.println(frequency);
delay(5000);
}

Libraries

To use the TEA5767 module, you need to install the TEA5767Radio library. You can install it via the Arduino Library Manager:

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for “TEA5767Radio” and install it.

Additional Tips

• Antenna Placement: Ensure the antenna is properly connected and placed in a location with minimal interference for better reception.
• Power Supply: Double-check the power supply requirements of your specific TEA5767 module. Some modules require 3.3V while others might work with 5V.
• Filtering: If you experience noise or poor signal quality, consider adding additional filtering capacitors between VCC and GND.

Applications

• DIY Radio Projects: Create custom FM radio receivers.
• Educational Projects: Learn about radio frequency and signal processing.
• Smart Home Systems: Integrate FM radio into smart home audio systems.
• Portable Devices: Add radio functionality to portable electronic devices.
