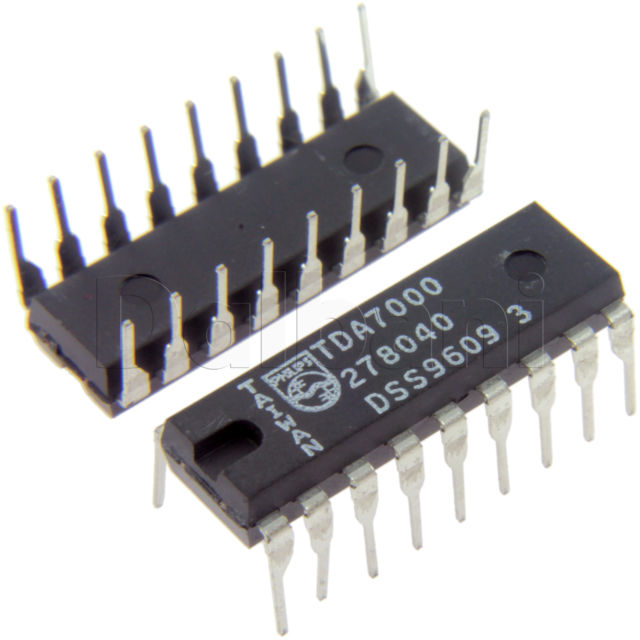

TDA7000 FM Radio IC COM21

Fr8,000

The TDA7000 is a monolithic integrated circuit for mono FM portable radios, where a minimum on peripheral components is important (small dimensions and low costs).

In stock

SKU: CPN338 Category:

Description

The TDA7000 is a monolithic integrated circuit for mono FM portable radios, where a minimum on peripheral components is important (small dimensions and low costs).

The IC has an FLL (Frequency-Locked-Loop) system with an intermediate frequency of 70 kHz. The i.f. selectivity is obtained by active RC filters. The only function which needs alignment is the resonant circuit for the oscillator, thus selecting the reception frequency.Spurious reception is avoided by means of a mute circuit, which also eliminates too
noisy input signals. Special precautions are taken to meet the radiation requirements.
The TDA7000 includes the following functions:
•R.F. input stage
•Mixer
•Local oscillator
•I.F. amplifier/limiter
•Phase demodulator
•Mute detector
•Mute switch

Specifications:

.Supply voltage range (pin 5) =====> Vp: 2,7 to 10 V
.Supply current at Vp= 4,5 V =====> Ip :typical 8 mA
.R.F. input frequency range =====> Frf:1,5 to 110 MHz
.Sensitivity for -3 dB limiting (e.m.f. voltage)

(source impedance: 75Ω; mute disabled) =====> EMF typical :1,5μV

.Signal handling (e.m.f. voltage)
(source impedance: 75Ω) =====> EMF typical :200 mV

.A.F. output voltage at RL= 22 kΩ =====> Vo typical :75 mV

Documents:

Datasheet
