Description

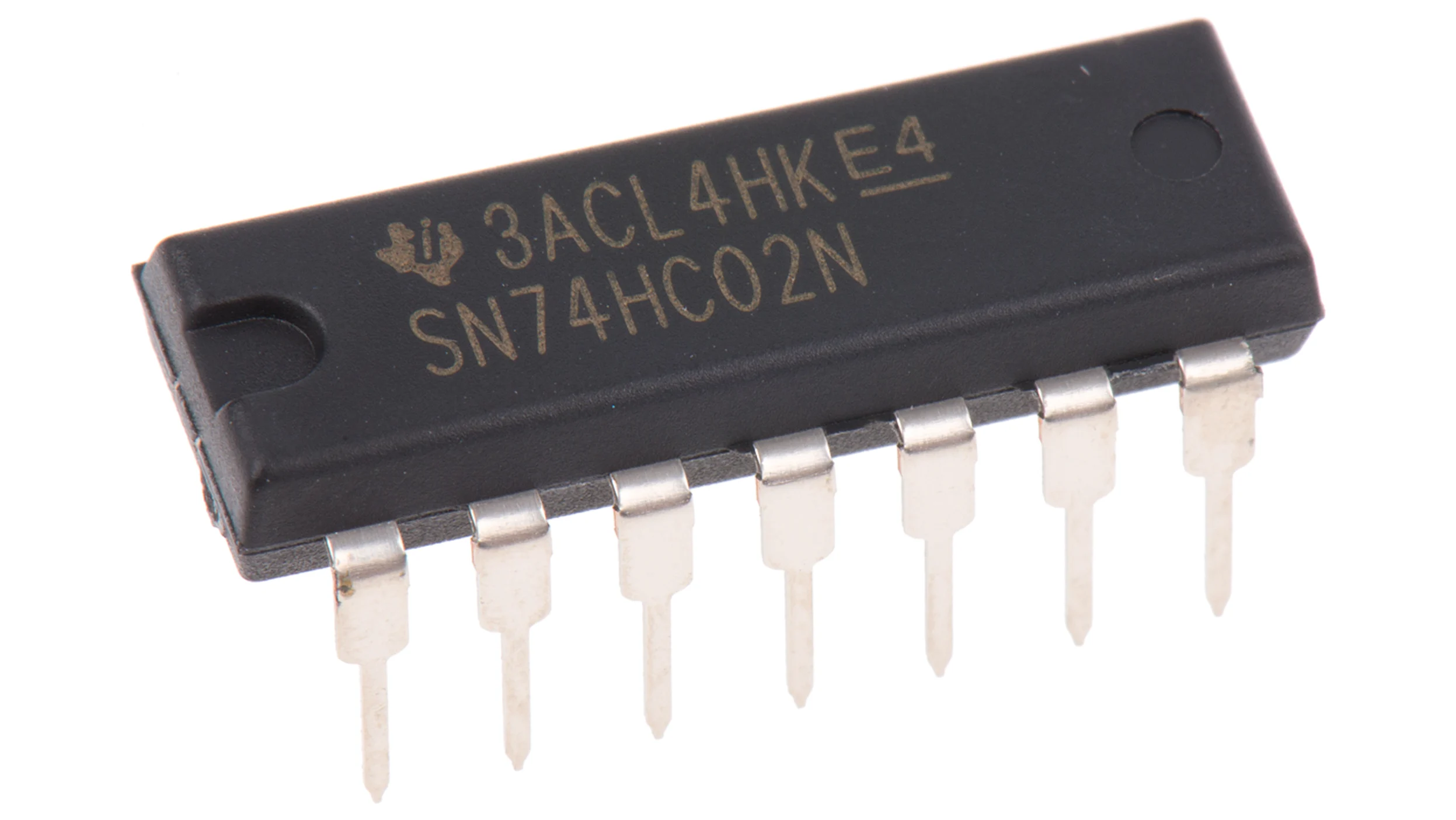

The SN74HC02 devices contain four independent 2-input NOR gates. They perform the Boolean function Y = A + B or Y = A • B in positive logic.
Features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption: Maximum ICC of 20 µA
- Typical tpd = 8 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1-µA
Document:
