Reed Switch Plastic Type 2*14mm Normally Open Magnetic Switch Anti Vibration GPS SEN44, R32

Fr2,000

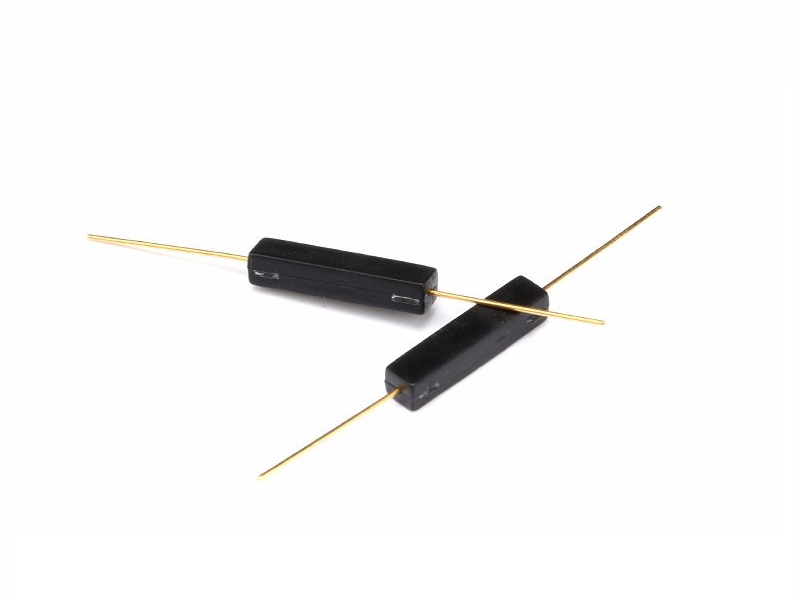

This is Reed Switch 2 x 14 mm Magnetic Control Switch with Normally Open Contact.

When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A.

This small and easy to use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range

In stock

SKU: SEN5641 Category:

Description

  • Sensor Body Material: ABS
  • filling:  …..
  • Max.Contact Rating: 10W
  • Max.Switching Voltage: 100VDC
  • Max.Switching Current: 0.5A
  • Min.Breakdown Voltage: 150VDC
  • Max.Carry Current: 1.0A
  • Max.Initial Countact Resistance (do not include the wire): 100 mohm
  • Min.Insulation Resistance: 109 ohm
  • Max.Release Time:  0.3ms
  • Max.Operate Time:  1.0ms
