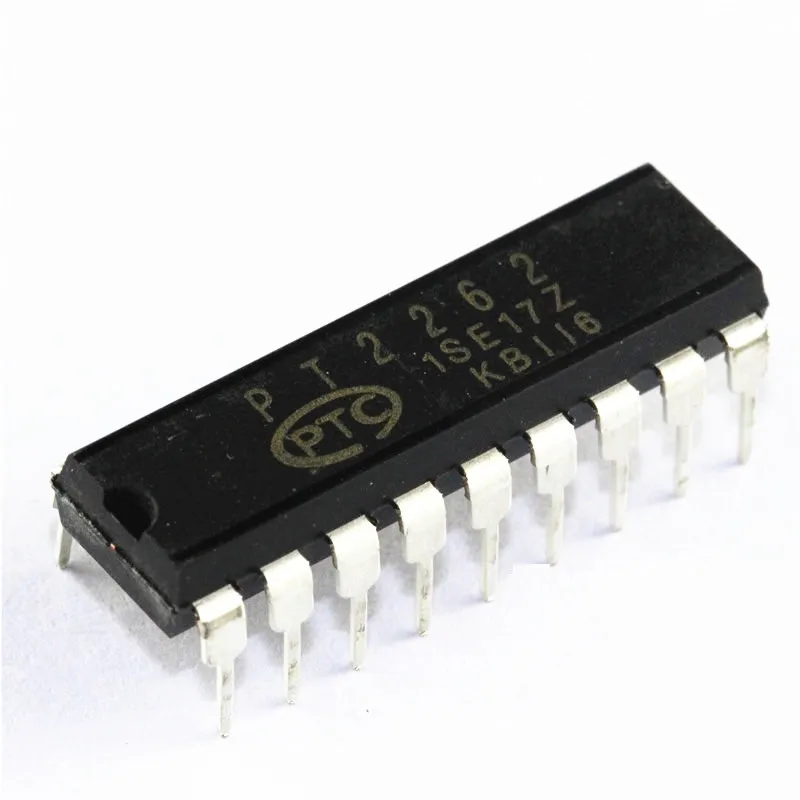

PT2262 DIP-18 PTC Remote Control Encoder GEN23, R32

Description

PT2262 is a remote control encoder paired with PT2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation.

Features

• CMOS Technology
• Low Power Consumption
• Very High Noise Immunity
• Up to 12 Tri-State Code Address Pins
• Up to 6 Data Pins
• Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts
• Single Resistor Oscillator
• Latch or Momentary Output Type
• Available in DIP and SO Package

Application

• Car Security System
• Garage Door Controller
• Remote Control Fan
• Home Security/Automation System
• Remote Control Toys
• Remote Control for Industrial Use

PT2262
