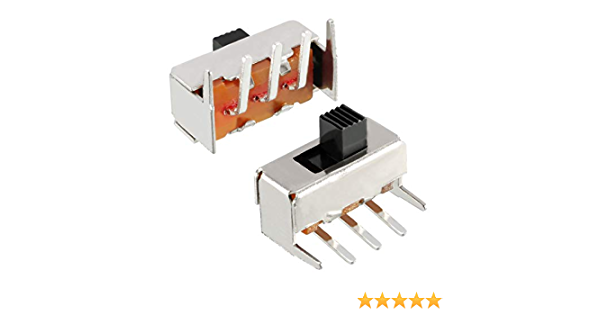

OS102011MS2QN1 slide switch COM22

Description

The OS102011MS2QN1 is a single-pole single-throw Miniature Slide Switch with On-On function, non-shorting timing, vertical orientation, copper alloy silver plated contacts and brass silver plated terminals. 100MR insulation resistance, 500V dielectric strength black POM actuator and sealed terminal. The OS series miniature slide switch is made with Halogen-free materials and comes with a variety of actuators and terminations, optional PC or panel mounting, shorting or non-shorting contacts and gold or silver plating. These features make the OS series attractive to designers in the test & measurement equipment, computer peripheral & network product and consumer products industries.

• Easy to install and easy to use.
• Good-looking and long life expediency
• Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.

Specification:

• Product Name: Slide Switch
• Position: 2
• Knob Height: 5mm / 0.2 inch
• Action Type: Latching
• Contact Type: 1P2T
• Terminal Quantity: 3
• Main Body Size: 13x 9 x 12mm / 0.51 x 0.35 x 0.47 inch (L*W*H)

Package includes:
1×OS102011MS2QN1 slide switch
