Non-invasive AC Current Sensor – 30A SEN31

Fr11,500

This non-invasive current sensor (also known as a “split core current transformer”) can be clamped around the supply line of an electrical load to tell you how much current is passing through it.It will measure a load up to 30 Amps which makes it great for building your own energy monitor to keep your power usage down, or even building an over-current protection device for an AC load.

In stock

SKU: SEN151 Category:

Description

Features:

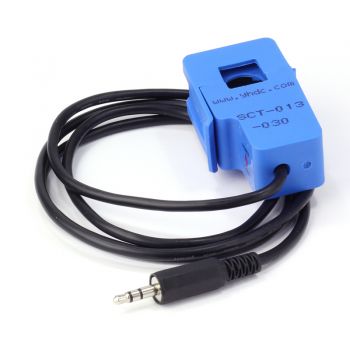

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications

  • Suitable for the current measuring
  • Monitoring and protection of AC motor
  • Lighting equipment
  • Air compressor

Specifications:

  • Input Current: 0~30A AC
  • Output Mode: DC 0~1V
  • Non-linearity：2-3%
  • Build-in sampling resistance（RL): 62Ω
  • Turn Ratio: 1800:1
