Description
The connector with wires can be easily modified to suit the wire configuration and polarity of your device. To do so, simply lift up the plastic clamp with a pin and pull the wires out of the female connector. Then you may alter the wires as you wish, and clip the clamp back on.
Specification：

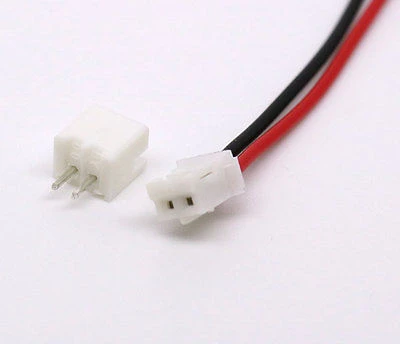

Product Name: Connector Plug With Wires
Condition: New
Part: Connectors/Wiring
Model: PH 2.0mm
Fuel Source: Electric
Length: 300mm
Wire: 26AWG
Features:
Pitch : 2.0
Poles :4
Applicable wire : AWG#26
Voltage rating : 250V DC/AC (Effective value)
Current rating : 2.0A
Withstand voltage : 800V AC (Effective value)
Working Temperature : -25°C ∼ +85°C
Insulation resistance : ≥ 1000M Ω
Contact resistance : ≤ 0.02 Ω
Applicable PC board thickness : 0.8mm – 1.6mm
