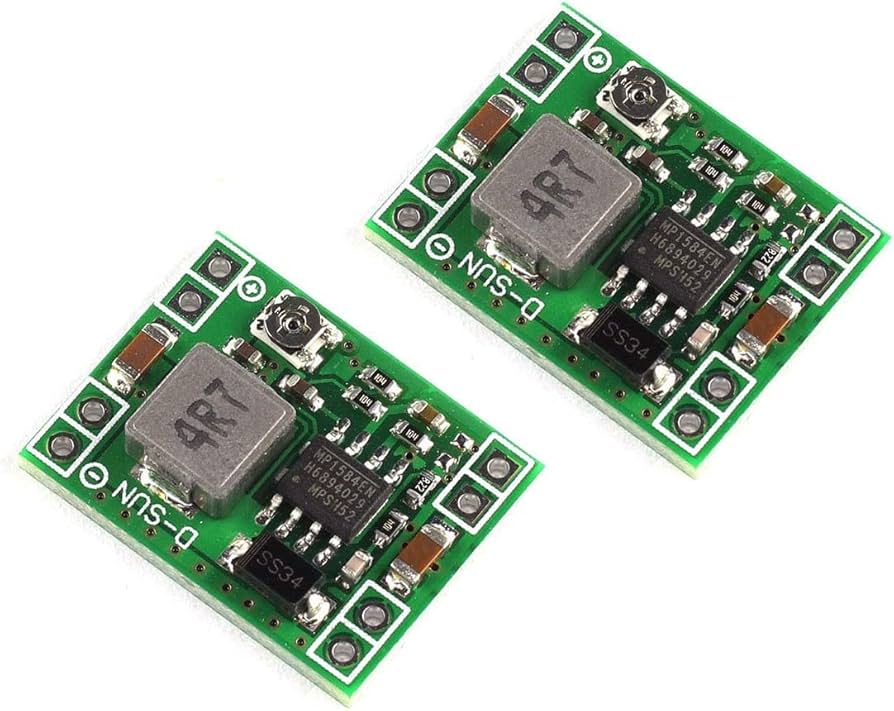

Description
SPECIFICATION
- Input Voltage:DC 4.5-24V
- Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
- Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
- Output Current:3A (max),actual testing input 12V output 1.5A
- Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
- Switch Frequency:500KHz
- Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
- Operating Voltage:-40 Celsius-85 Celsius
- Output Overvoltage Protection:no
- Static Current:0.85MA
- Load Adjust Rate:±1%
- Voltage Adjust Rate:±0.5%
- Dynamic Response Speed:5% 200uS
- Output Short Circuit Protection:yes
- Input Transposition Protection:no
- Enable Control:yes
- Connecting Type:soldering
- Input Way:soldering
- Output Way:soldering/pin
- Soldering Hole Space:2.54mm
