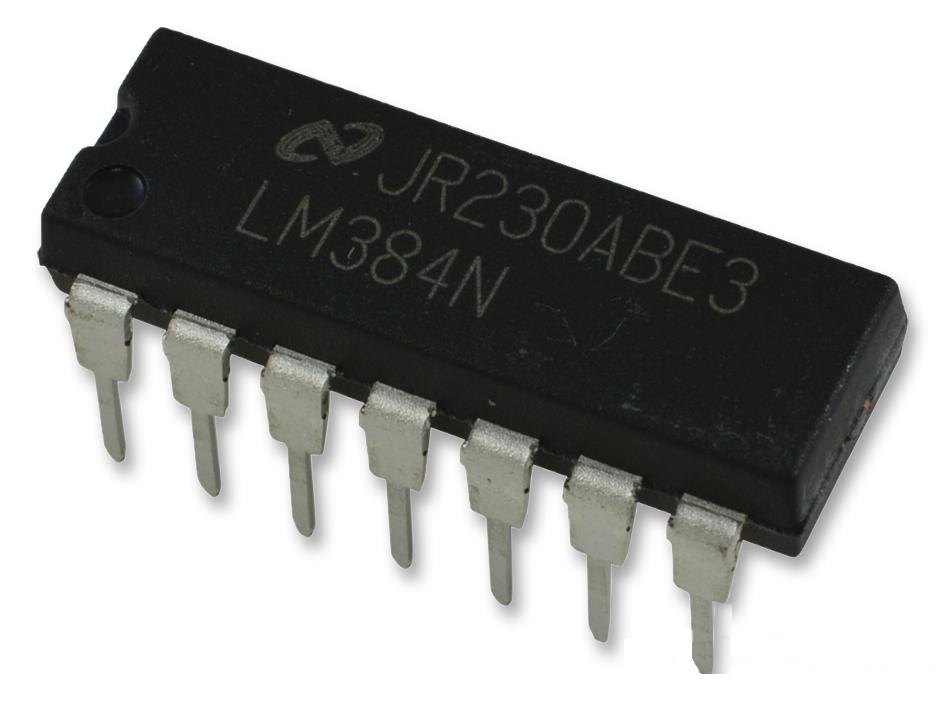

LM384N AMP AUDIO PWR 5.5W MONO COM21

The LM384 is a power audio amplifier for consumer applications. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows ground referenced input signals. The output automatically self centers to one-half the supply voltage.

Features:

• Wide supply voltage range: 12V to 26V
• Low quiescent power drain
• Voltage gain fixed at 50
• High peak current capability: 1.3A
• Input referenced to GND
• High input impedance: 150kΩ
• Low distortion: 0.25% (Po =4W, R=8Ω)
• Quiescent output voltage is at one half of the supply voltage
• Standard dual-in-line package

Document:

Datasheet
