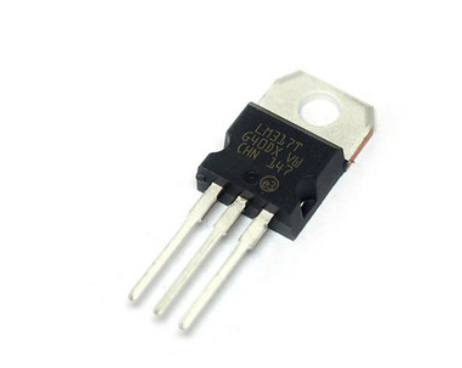

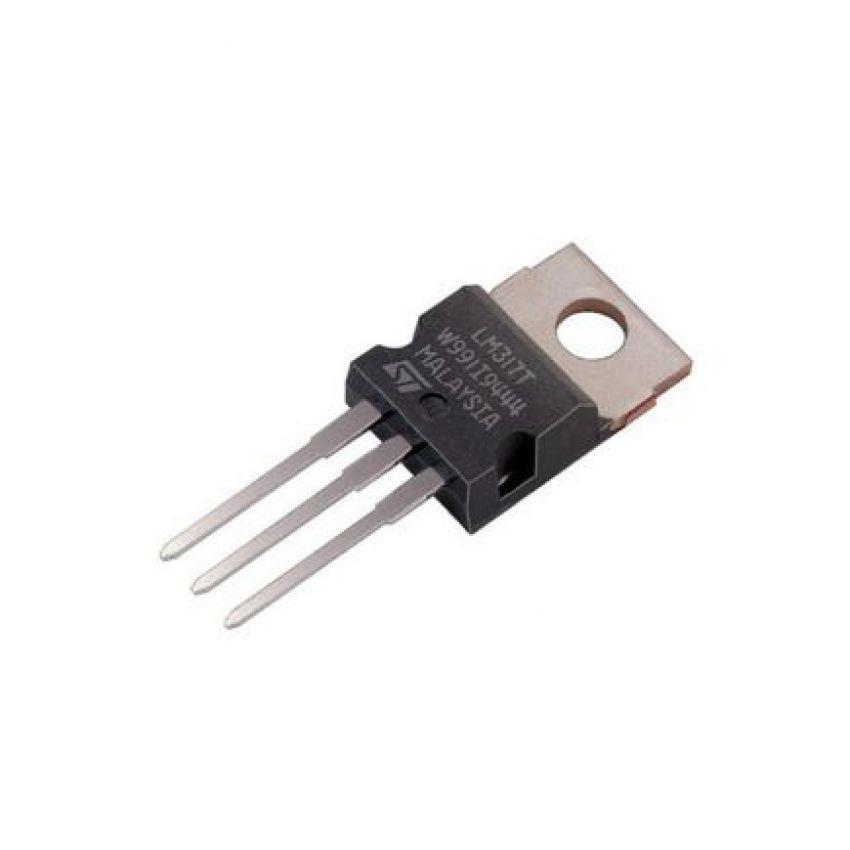

LM317-Voltage Regulator 1.25V to 37V REG21 , R33

Fr400

This is the LM317 voltage regulator, a three-terminal positive regulator with a 1.2V to 37V adjustable output voltage. This adjustable regulator provides a local regulation, internal current limiting, thermal shut-down control, and safe area protection for your project. It is easy to use and It only requires two external resistors to set the output voltage. Each one of these voltage regulators can output a max current of 1.5A.

In stock

SKU: CPN578 Category:

Description

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.

Features

  • Output Voltage: 1.2V – 37V Adjustable
  • Output Current: 1.5A
  • Thermal Overload Protection
  • Short Circuit Protection
  • Output Transistor Safe
  • Floating Operation for High Voltage Applications

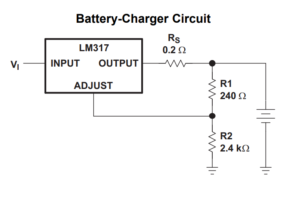

Circuit

Document

Datasheet

Package includes:
1×LM317 Voltage Regulator
