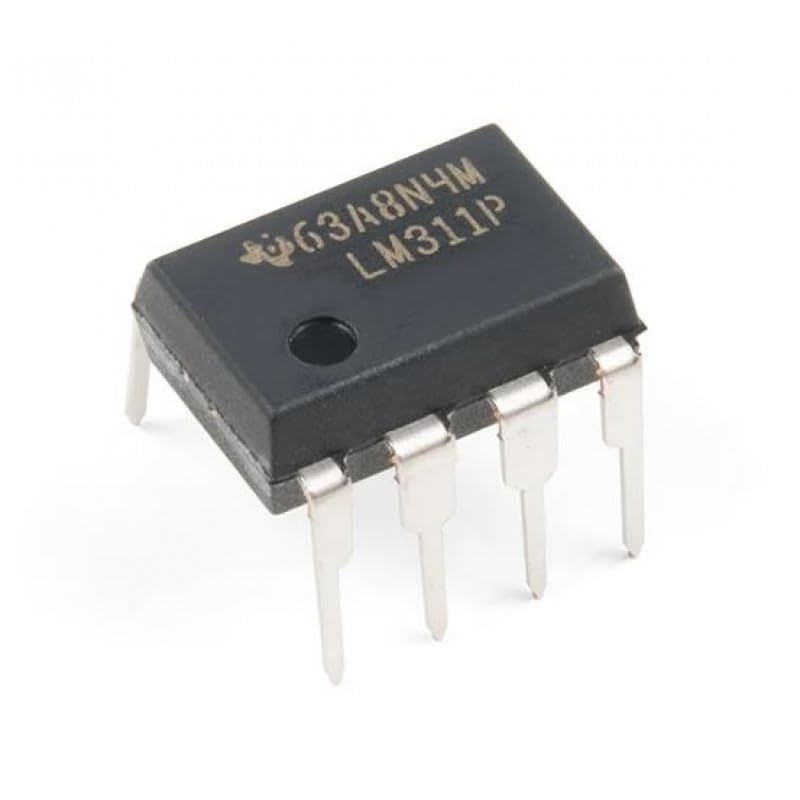

LM311 Voltage comparator COM21

Fr500

The LM311 LM311P IC DIFF STROBE 8DIP is voltage comparator that have low input current.It is also designed to operate over a wide range of supply voltages: from standard ±15V operational amplifier supplies down to the single +5V supply used for IC logic.
Its output is compatible with RTL-DTL and TTL as well as MOS circuits and can switch voltages up to +50V at output currents as high as 50mA.

In stock

SKU: CPN3413 Category:

Description

The LM311 LM311P IC DIFF STROBE 8DIP is voltage comparator that have low input current.It is also designed to operate over a wide range of supply voltages: from standard ±15V operational amplifier supplies down to the single +5V supply used for IC logic.
Its output is compatible with RTL-DTL and TTL as well as MOS circuits and can switch voltages up to +50V at output currents as high as 50mA.

Features:

  • Maximum input current: 150nA
  • Maximum offset current: 20nA
  • Differential input voltage range: ±30V
  • Power consumption:135mW at ±15V
  • Supply voltage: +5V to ±15V
  • Output current: 50mA
