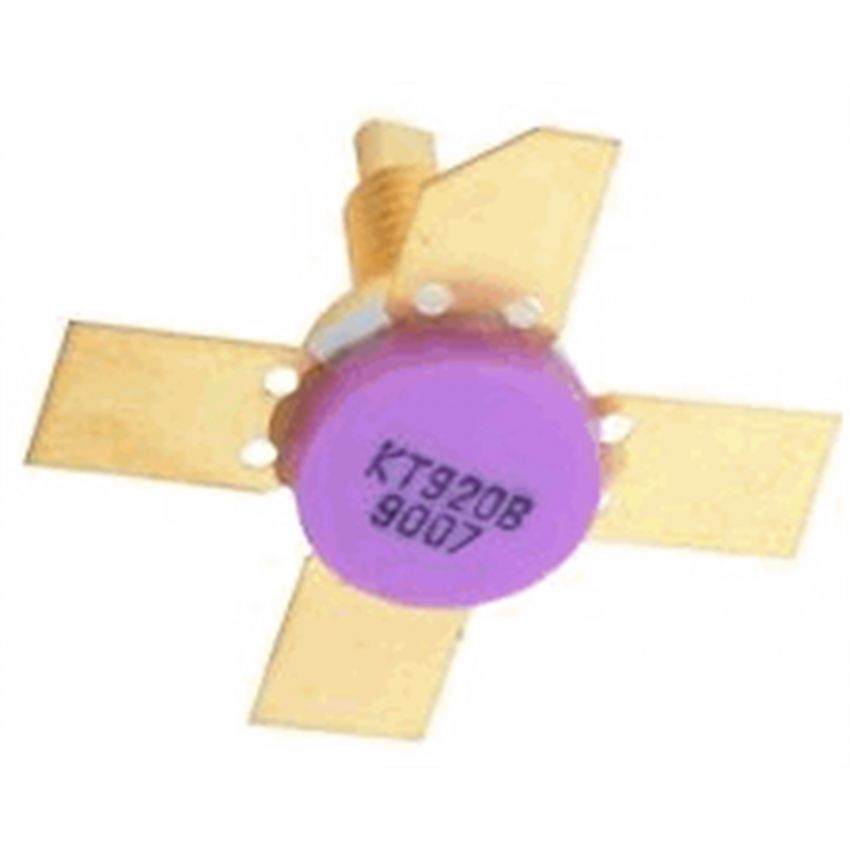

KT920B UHF/VHF Power Transistor

Description

This is a ultrahigh power transistor that can providde between 10W up to 30W

Maximum collector power dissipation (Pc), W: 10
Maximum collector-base voltage -Ucb-, V: 36
Maximum collector-emitter voltage -Uce-, V: 0
Maximum emitter-base voltage -Ueb-, V: 4
Maximum collector current -Ic max-, A: 1
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 400
Collector capacitance (Cc), pF: 25
Forward current transfer ratio (hFE), min: 25
Noise Figure, dB: –
Ucbo:36 V
Ic /Max/:3 A
Frequency:400 MHz
Power:25 W
Application:

It can be used in transimition

Documents:

Datasheet
