Description

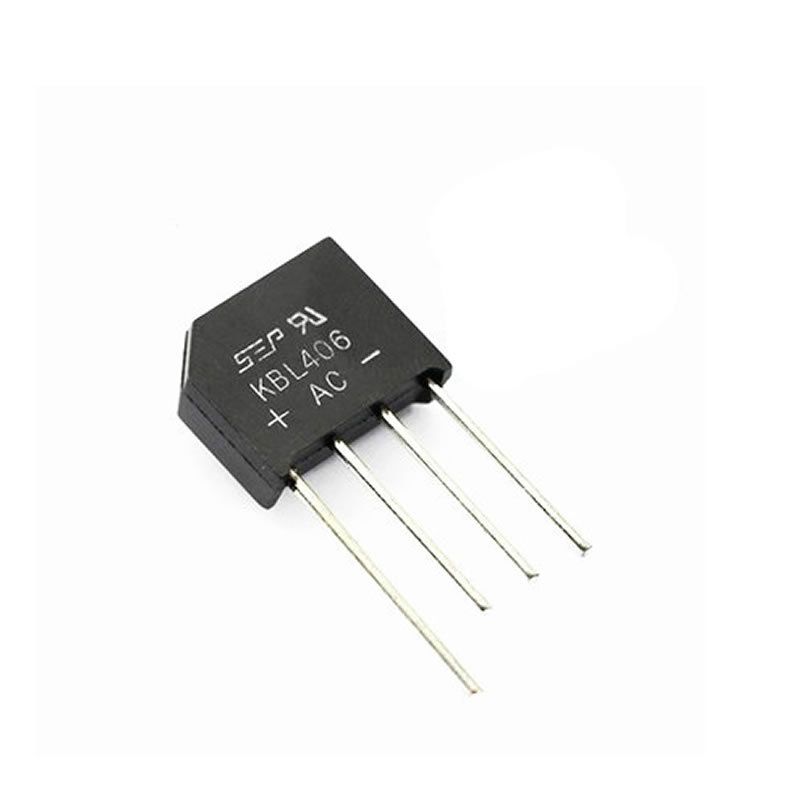

The KBL series of single phase rectifier bridge consists of four silicon junctions connected as a full bridge. These devices are intended for general use in industrial and consumer equipment.
Features:
- Mounting style: Single phase bridge
- Forward Current: 4 A
- Peak Reverse Voltage: 400V
- Forward Voltage: 1.1 V
- Max Surge Current: 150 A
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 65 C
- Reverse Current: 10 uA
- RMS Reverse Voltage: 420 V
