Description
J112 is a high-performance N channel silicon FET or field effect transistor of the J11x series. Other transistors in this rage include JS111 and 112 which have similar uses but differing specs to suit particular requirements. But the primary applications for which these transistors are designed for are sample and hold applications, choppers, analog switching applications, commentators, current limiting etc.
There are also some benefits of using these transistors on particular applications basis such as these transistors are suitable for high speed switching, they provide better response to frequency, they have good accuracy, provide low insertion loss, they also have symmetrical feature which means the source and drain can be swapped other than these benefits they are also very low cost.
Features / Technical Specifications:
- Package Type: TO-92, SOT-23
- Transistor Type: N Channel JFET (Symmetrical)
- Maximum Drain to Gate Voltage: 35V
- Maximum Reverse Gate to Source Voltage: –35V
- Maximum Continues Gate Current: 50mA
- Maximum Gate to Source Cutoff Voltage : –5 to –3V
- Maximum Power Dissipation: 625mW
- Max Storage & Operating temperature Should Be: -55 to +150 °C
- Drain and source are exchangeable.
Applications:
- Audio preamplifiers applications
- High gain amplifiers circuits
- Low level signal amplification applications
- Sensor & detector applications
- Current limiting circuits
- Analog switching applications

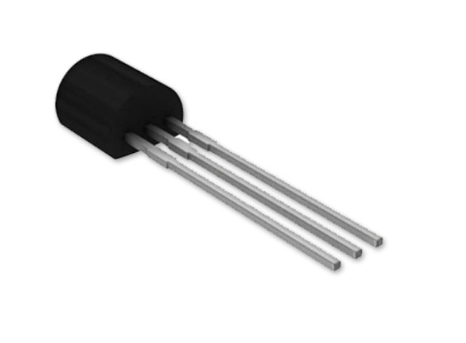

Package includes: 1×JFET J112 TO-92N Channel JFET
