Description

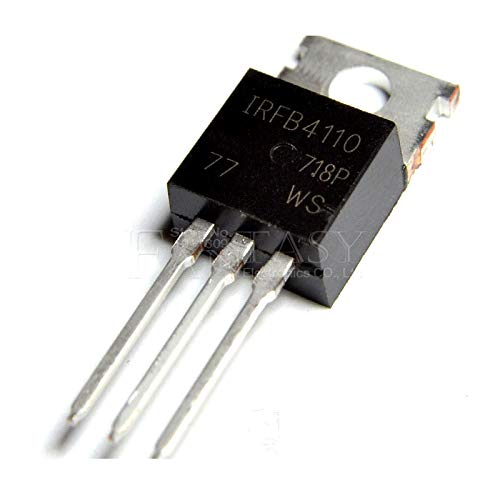

IRFB4110 IC IRFB4110 MOSFET Transistor 100V 180A 370W TO-220 N-Channel Power MOSFET 3 Pin Lead IC IRF4110 Transistor
IRFB4110 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
- High efficiency synchronous rectification in SMPS
- Uninterruptible power supply
- High speed power switching
- Hard switched and high frequency circuits
Specification:
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds) : 100V
- Continuous Drain Current (Id): 180A
- Drain-Source Resistance (Rds On): 4.5Ohms
- Gate-Source Voltage (Vgs): 20V
- Gate Charge (Qg): 210 nC
- Operating Temperature Range: -55 – 175°C
- Power Dissipation (Pd): 370W
Package Include:
- 1 x IRFB4110 MOSFET N-CH Si 100V 180A
