Description
The FT232R is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-IDTM security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
- Single chip USB to asynchronous serial data transfer interface
- Entire USB protocol handled on the chip – No USB-specific firmware programing required
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits & odd/even/mark/space/no parity
- Fully assisted hardware or x-on / x-off software handshaking
- In-built support for event characters and line break condition
- New USB FTDIChip-IDTM feature
- New configurable CBUS i/o Pins
- Auto transmit buffer control for RS485 applications
- Transmit and receive LED drive signals
- New48MHz, 24MHz, 12MHz, and 6mhZ clock output signal options for driving external MCU or FPGA
FEATURES
- Manufacturer : Future Technology Devices International, Ltd.
- Product Category : Controllers
- Current – Supply : 15mA
- Function : Bridge, USB to UART
- Interface : UART
- Operating Temperature : -40°C ~ 85°C
- Product Status : Active
- Protocol : USB
- Standards : USB 2.0
- Supplier Device Package : 28-SSOP
- Voltage – Supply : 3.3V ~ 5.25V

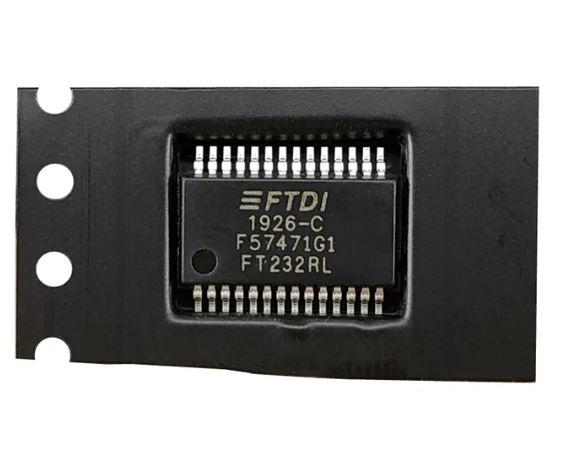

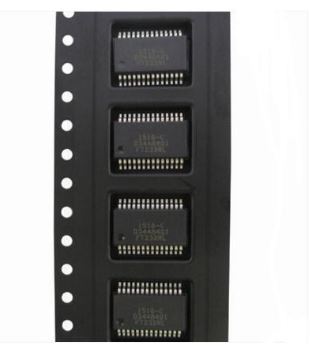

Package includes: 1×FT232RL SSOP28 Chip bridge
