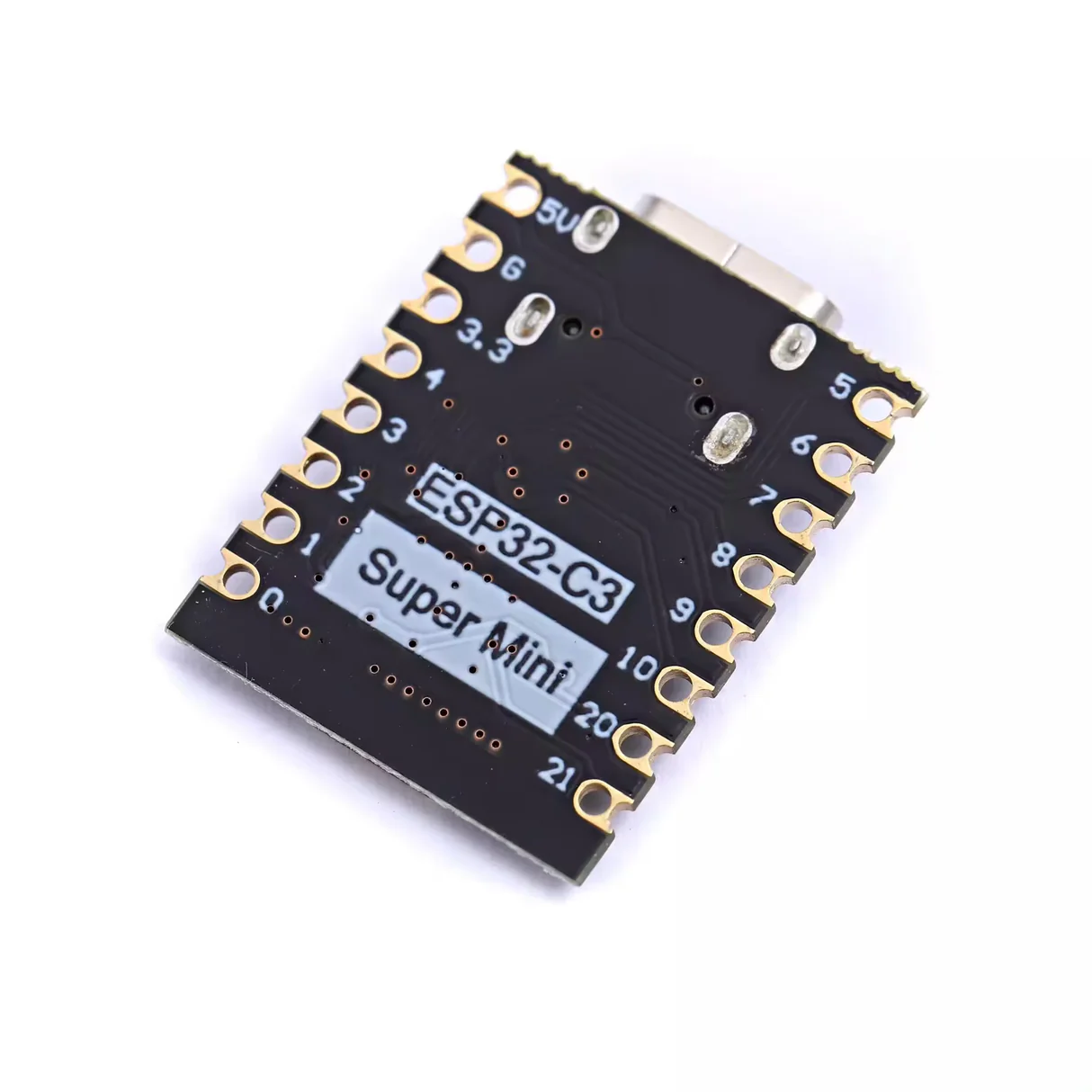

  2. ESP32 C3 SuperMini COM53, R38 - Image 2

ESP32 C3 SuperMini COM53, R38

Fr9,000

The ESP32 C3 SuperMini is an loT mini development board based on the Espressif ESP32-C3 WiFi/ Bluetoot hdual-mode chip. The ESP32-C3 is a 32-bit RISC-V CPU that contains the FPU (floating point unit) for32-bit single-precision operations with powerful computing power. It has excellent F performance and supportsIEEE 802.11b /g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications.

In stock

SKU: DEV31839 Category:

Description

The ESP32 C3 SuperMini is an loT mini development board based on the Espressif ESP32-C3 WiFi/ Bluetoot hdual-mode chip. The ESP32-C3 is a 32-bit RISC-V CPU that contains the FPU (floating point unit) for32-bit single-precision operations with powerful computing power. It has excellent F performance and supportsIEEE 802.11b /g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also has a small and delicate form factor combined with a single-sided surface mount design. It is equipped with a wealth of interfaces, with 11 digital I/ OS that can be used as PWM pins and 4 analog I/OS that can be usedas ADC pins. It supports four serial interfaces: UART, I2C and SPI. The oard also has a small reset button and a boot loader mode button. Combined with the above features, the ESP32C3SuperMini is positioned as a high-performance,lowpower,cost-effective iot mini development board for low-power iot applications and wireless wearable applications.

Product parameter:

  1. Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz
  2. WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
  3. Bluetooth: Bluetooth 5.0
  4. Ultra-low power consumption: deep sleep power consumption of about 43uA
  5. Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
  6. Chip model: ESP32C3FN4
  7. Ultra-small size: As small as the thumb (22.52x18mm) classic shape, suitable for wearables and small projects
  8. Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC,digital signatures, and secure startup

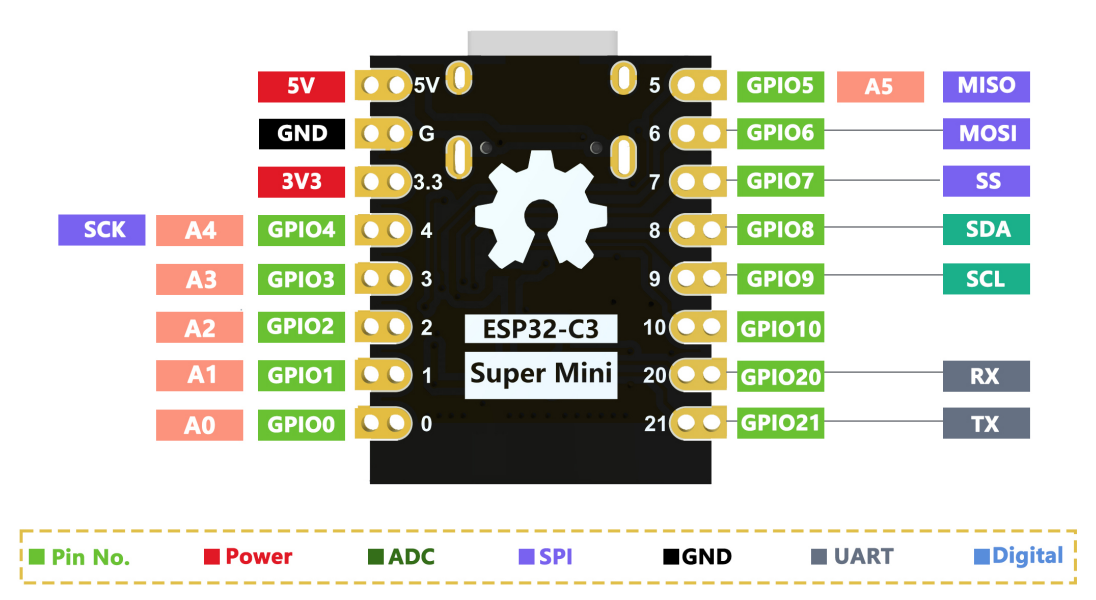

  9. Rich interface: 1x12C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
  10. Single-sided components, surface mount design
  11. Onboard LED blue light: GPIO8 pin

  1. Connect to WiFi network and Blink Builtin LED:

Copy the Following code in the IDE

#include <WiFi.h>
const char* ssid = “YOUR_WIFI NAME HERE”; //your WiFi Name
const char* password = “YOUR_WIFI PASSWORD HERE”; //your WiFi password
int ledpin=8;
void setup()
{
pinMode(ledpin,OUTPUT);
Serial.begin(115200);
delay(10);
// We start by connecting to a WiFi network
Serial.println();
Serial.println();
Serial.print(“Connecting to “);
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(“.”);
}
Serial.println(“”);
Serial.println(“WiFi connected”);
Serial.println(“IP address: “);
Serial.println(WiFi.localIP());
}
void loop()
{
  digitalWrite(ledpin,HIGH);
  delay(1000);
  digitalWrite(ledpin,LOW);
  delay(1000);
}

After uploading, you will see the LED flashing on the board with a 1-second delay between each
flashing.

When using this module, you may encounter an issue where the port is not recognized or accessible

Solution

step1: Press and hold down the BOOT button of ESP32C3 SuperMini ;

step2: Press the Reset button;

step3: Release the Reset button and then release the BOOT button;

If you follow above steps, ESP32C3 SuperMini port instability issue will be handled.

The program is not running after being uploaded

Solution

After uploading the program ,you need to press Reset button to execute the upload.

ESP32C3 SuperMini Serial monitor isn’t printing the output

Solution

Set the USB CDC on the toolbar to Enabled.

ESP32-C3 SuperMini datasheet
