Description
The valve is a series of gas emergency shut off solenoid valves, specially designed as gas pipe breaker for emergency use . It can be connected with gas leaking detection sensor ,fire alarm circuit or other intelligent sensor modules so that on site or remote shut down on gas supply (manually or automatically) is possible , hence ensuring the safety on gas usage .the valve features an auto-close when strong vibration is detected .After close,manual operation is required to turn on the valve. This feature meets safety regulations in the event of an accident.
Features
- Made from qualified metal and it is durable for long term use.
- Specially designed as gas pipe breaker for emergency use
- Features an auto-close when strong vibration is detected.
- It can be connected with gas leaking detection sensor, fire alarm circuit or other intelligent sensor modules.
Specifications
Body: alloy
Driving Voltage: DC9-12V
Sealing material: NBR rubber
Close time:<1sec
Operation temperature: -10~50 degree
Pressure max: 500mpa
Lead wire: 0.4m
Connection: G1/2″
Turn on: manual
Size: 60x100mm
Color: black

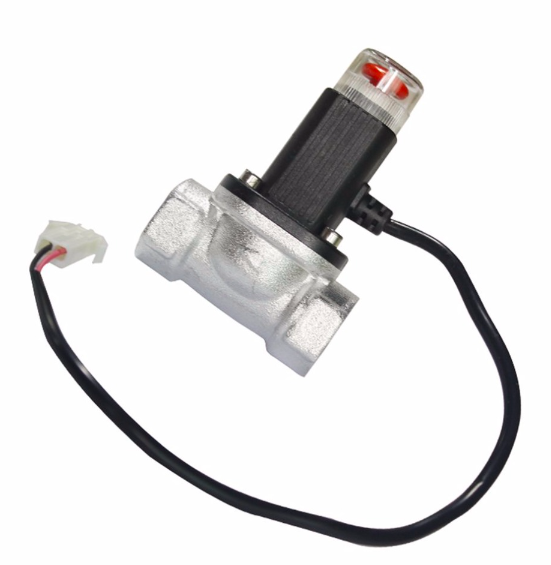

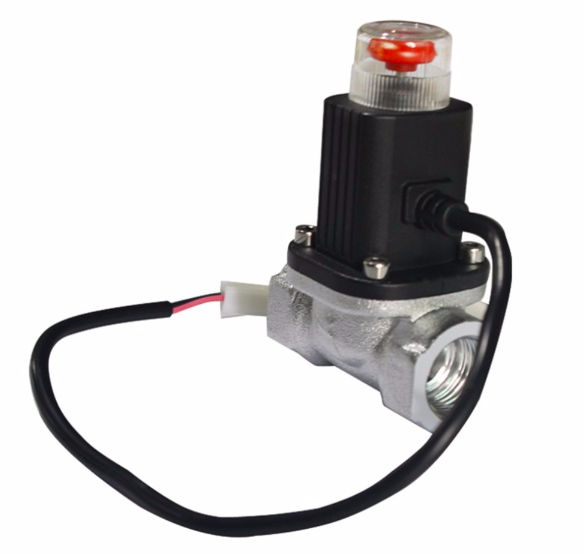

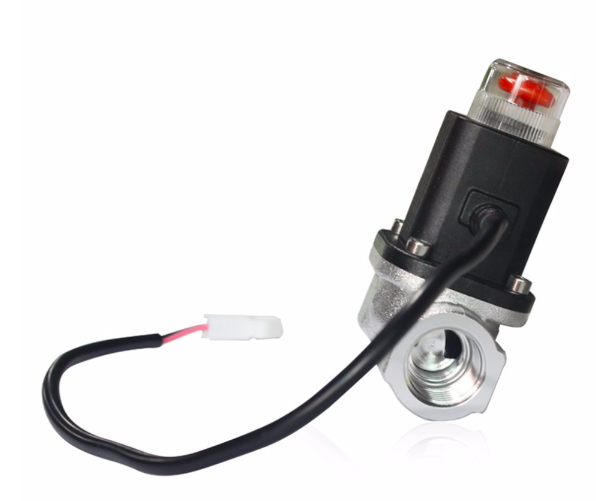

Package includes: 1×LPG Natural Gas Emergency Shut Off Solenoid Valve
