DC 5V G1/4 Pressure Sensor Transmitter Pressure COM56

Fr27,000

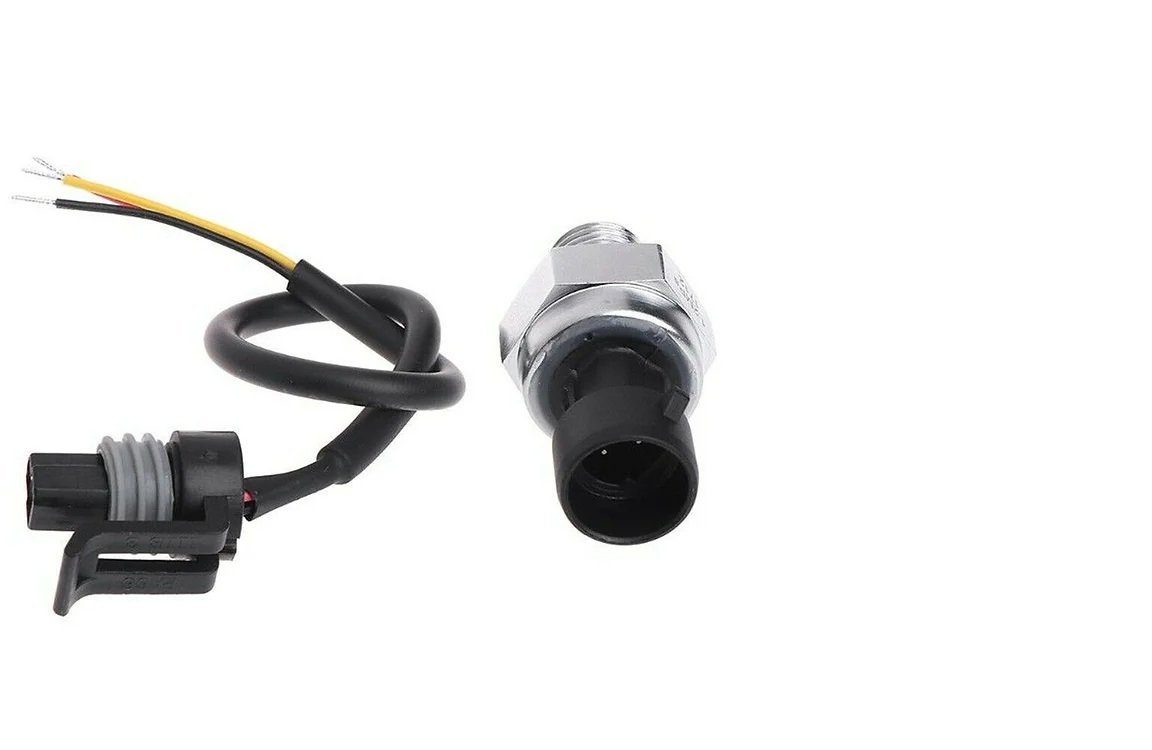

DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil



Out of stock

Notify me when stock available

SKU: PRS13855 Category:

Description



  1. Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
  2. Suitable for civil use product batch
  3. Static accuracy: plus or minus 1.0% FS
  4. Pressure range 0-1.2 MPa
  5. Wide range of temperature compensation
  6. Medium for non-corrosive gas, water, oil, etc



Specifications:
Working Voltage: 5VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Carbon steel alloy
Working Current: ≤10 mA
Working Pressure Range: 0-1.2 MPa
The Biggest Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: 0-85 degrees
Storage Temperature Range: 0-100 degrees
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs

Application: non-corrosive gas liquid measurement

NOTE:
It is not compatible with cars according to User Experience, it caused the working Temp. range is 0-85 Celsius Degree, please note! Thanks!



Features:
Easy removal, carbon steel connection more firmly.
Stainless steel is durable, sealed waterproof line, imported chips.
Wiring: red +, black -, yellow output
