Description

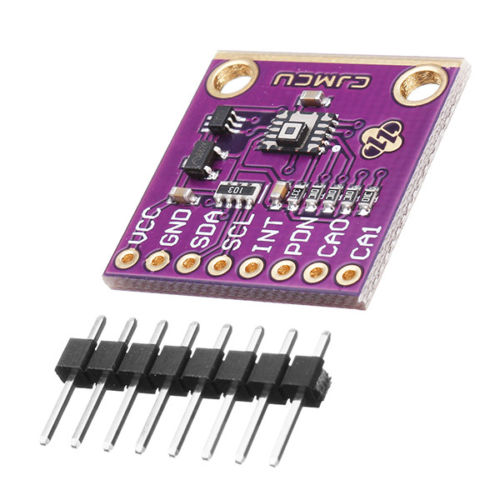

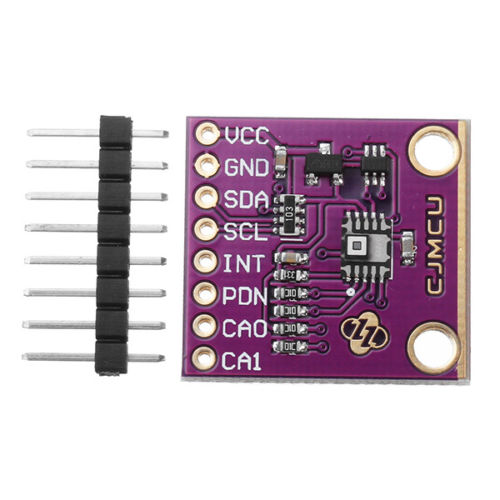

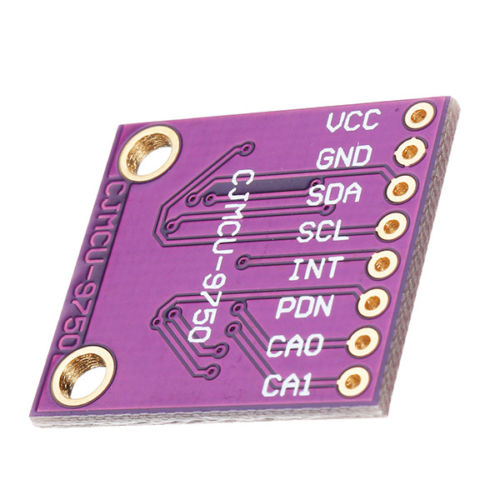

CJMCU-9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.
The four IR sensors’ offset and gain variations are calibrated at shipment. An integral A/D converter provides 16-bits data outputs.
Additional integrated features include a field of view limiter and an optical filter. The AK9750 is suitable for applications including stationary human detection.
Supply voltage: 3.3V-5V
Communication level: I2C IIC communication compatible with 3.3V-5V
Size: 21mm*22mm
