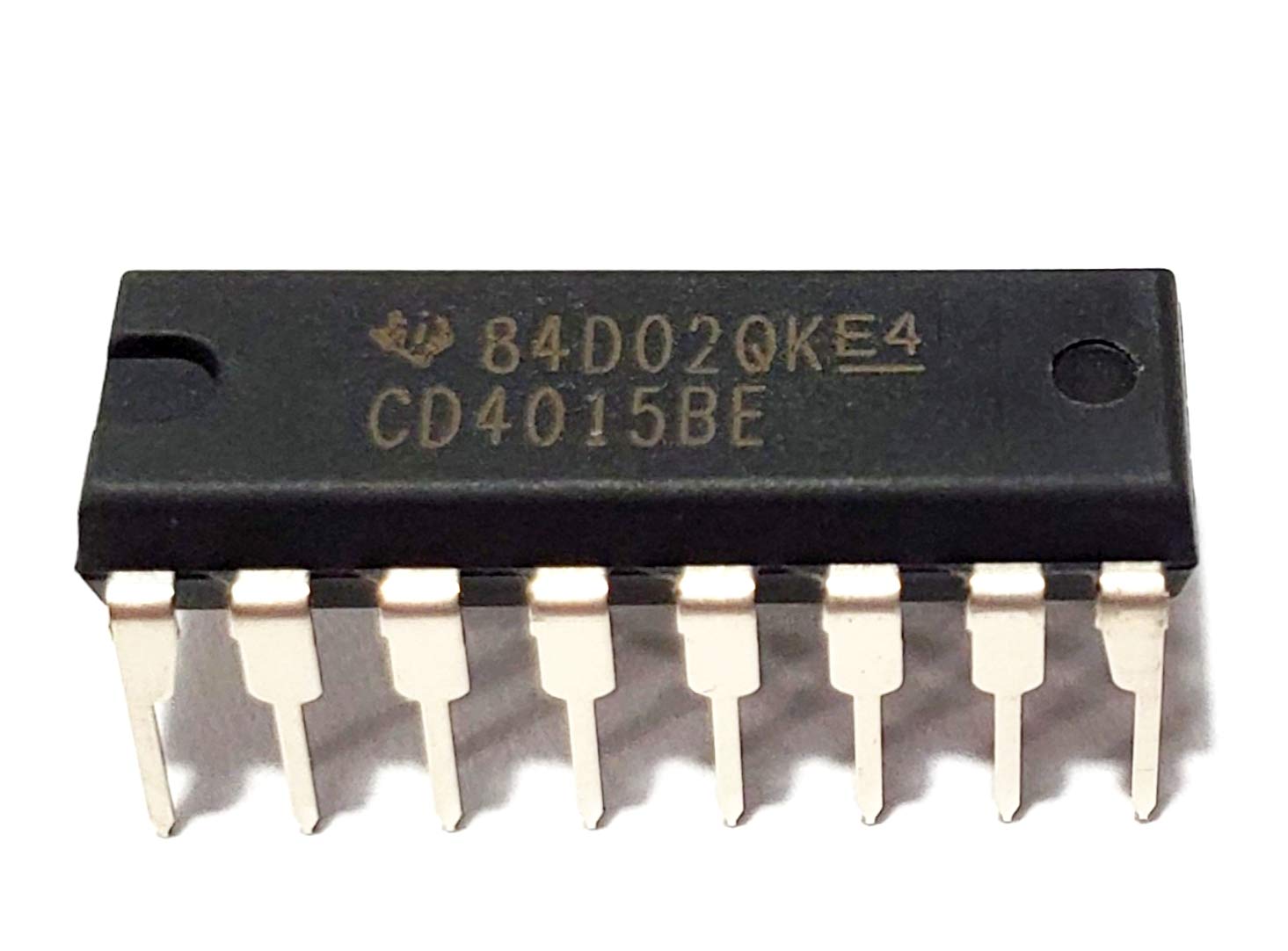

CD4015BE Dual 4-Stage Static Shift Register COM23

Fr1,000

The CD4015BC contains two identical, 4-stage, serial input/parallel-output registers with independent “Data”, “Clock,” and “Reset” inputs. The logic level present at the input of each stage is transferred to the output of that stage at each positive-going clock transition.

In stock

SKU: CPN3869 Category:

Description

The CD4015BC contains two identical, 4-stage, serial input/parallel-output registers with independent “Data”, “Clock,” and “Reset” inputs. The logic level present at the input of each stage is transferred to the output of that stage at each positive-going clock transition.

Features

  • Wide supply voltage range: 3.0V to 18V
  • High noise immunity: 0.45 VDD (typ.)
  •  Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS
  • Medium speed operation: 8 MHz (typ.) clock rate
  •  Fully static design: @VDD − VSS = 10V

Applications

• Serial-input/parallel-output data queueing
• Serial to parallel data conversion
• General purpose register
