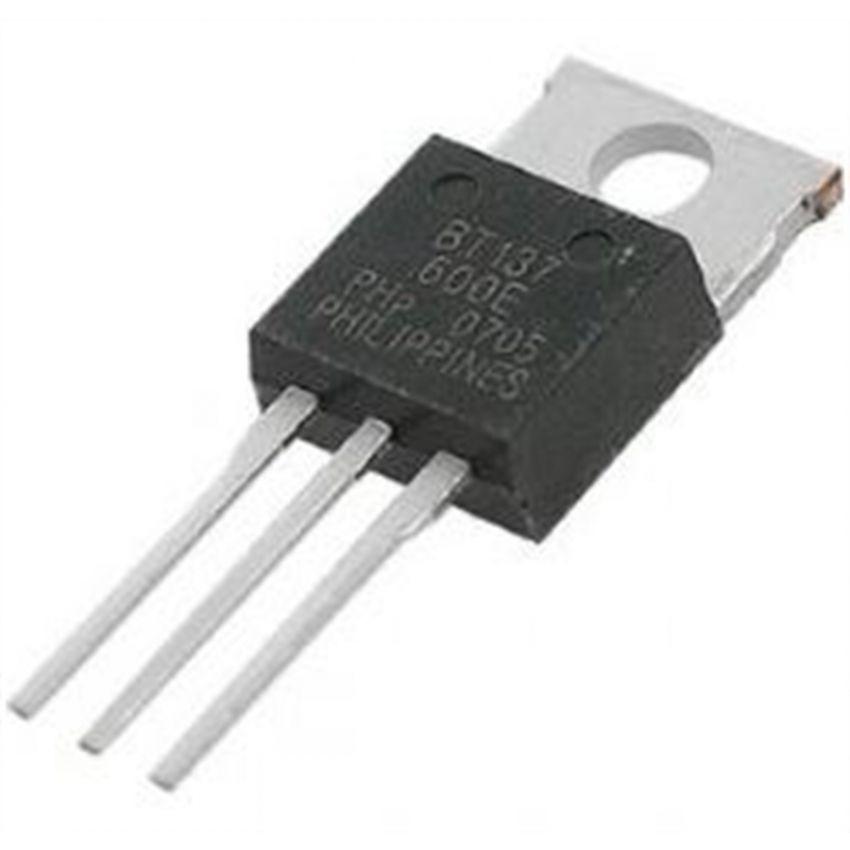

BT137-600 TRIAC, 8A, 600V TH21 ,R32

Description

1. General description
Planar passivated sensitive gate four quadrant triac intended for use in general purpose bidirectional switching and phase control applications. This
sensitive gate “series E” triac is intended to be interfaced directly to microcontrollers,logic integrated circuits and other low power gate trigger circuits.
2. Features and benefits
• Direct triggering from low power drivers and logic ICs
• High blocking voltage capability
• Low holding current for low current loads and lowest EMI at commutation
• Planar passivated for voltage ruggedness and reliability
• Sensitive gate
• Triggering in all four quadrants

•Repetitive peak offstatevoltage(Vdrm): 600A

•Non-repetitive peak onstate current(Itsm): 65A

•RMS on-state current It(rms): 8A

3. Applications
• General purpose motor control
• General purpose switching
