Description

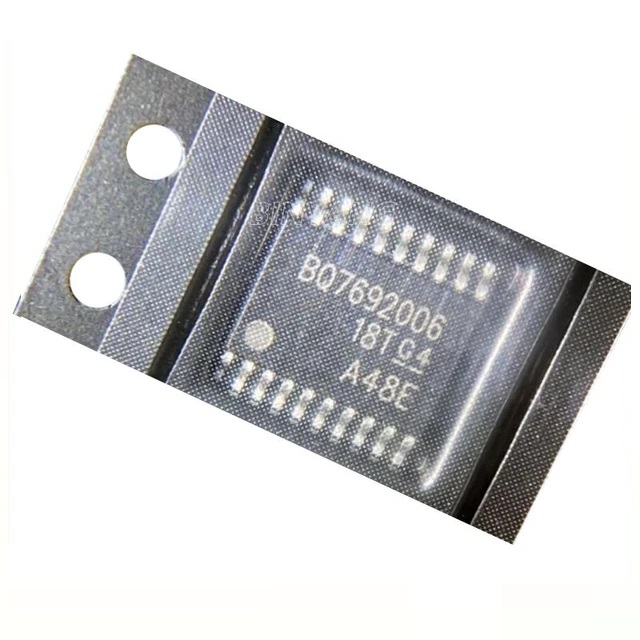

The BQ7692006 family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation, highpower systems, such as light electric vehicles, power tools, and uninterruptible power supplies. The BQ7692006 is designed with low power in mind: Subblocks within the IC may be enabled or disabled to control the overall chip current consumption, and a SHIP mode provides a simple way to put the pack into an ultra-low power state. The BQ7692006 device supports up to 5-series cells or typical 18-V packs.
Description
Function: Battery Monitor
Battery Chemistry: Li-Ion Li-Pol LiFePO4
Voltage – Supply: 6 V ~ 25 V
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Features
AFE Monitoring Features
– Pure digital interface
– Internal ADC measures cell voltage, die temperature, and external thermistor
– A separate, internal ADC measures pack current (coulomb counter)
– Directly supports up to three thermistors (103AT
• Hardware Protection Features
– Overcurrent in discharge (OCD)
– Short circuit in discharge (SCD)
– Overvoltage (OV)
– Undervoltage (UV)
– Secondary protector fault detection
Additional Features
– Integrated cell balancing FETs
– Charge, discharge low-side NCH FET drivers
– Alert interrupt to host microcontroller
– 2.5-V or 3.3-V output voltage regulator
– No EEPROM programming necessary
– High supply voltage abs max (up to 108 V)
– Simple I2C™ compatible interface (CRC option)
– Short circuit in discharge (SCD)
– Random cell connection tolerant
Application
• Light Electric Vehicles (LEV): eBikes, eScooters,Pedelec, and Pedal-Assist Bicycles
• Battery Backup and UPS Systems
• Wireless Base Station Backup Systems
• Power and Gardening Tools
• 12-V, 18-V, 24-V, 36-V, and 48-V Battery Packs
