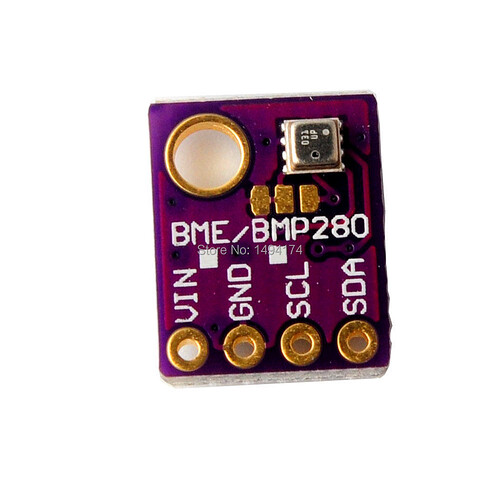

Description
BME280 is a small-package, low-power digital composite sensor using APSM (Advanced Porous Silicon Membrane) technology. It can measure ambient temperature, humidity and atmospheric pressure. It is backward compatible with BMP280, and the air pressure and temperature register control and data readout operations are the same. The humidity sensor has fast wake-up and response time, high accuracy and wide temperature operating range; the air pressure sensor is a piezo resistive low-noise, high-precision and high-resolution absolute atmospheric pressure sensing element; the temperature sensor has low-noise and high-resolution characteristics , the temperature value can perform temperature compensation self-correction for humidity and air pressure. The humidity sensing element and the air pressure sensitive element can be independently enabled/disabled. By configuring the sampling rate register, the sampling rate of the sensitive element can be set, which is very suitable for mobile devices with limited space, such as smart phones, tablets, smart watches and wearable devices. , weather forecast, vertical speed indication, flight control equipment, indoor and outdoor navigation, smart home devices
Product parameters
- Working voltage: BME280 (1.7 3.6V DC) BMP280 (5V DC)
- Temperature measurement range: 0℃~65℃
- Temperature measurement error: ±0.5℃ MAX±1℃; resolution 0.1℃
- Relative humidity measurement range: 0%~100%
- Humidity response time: greater than 1s
- Relative humidity measurement error: ±2%;
- humidity hysteresis: ±1%; resolution 0.8%
- Air pressure measurement range: 300~1100hPa (hectopascals)
- Air pressure measurement error: ±1hPa Resolution 0.18Pa
- Digital interface type: IIC (slave mode 3.4MHz) or SPI (3-wire or 4-wire slave mode 10MHz)
- Dimensions: 15.4mm (length) * 11.6mm (width) * 2.4mm (Height) With M3 fixing screw holes for easy installation and fixing.
Pin description
- VCC: power positive
- GND: ground
- SCL: 12C/SPI serial clock line
- SDA: 12C serial data line
