Description

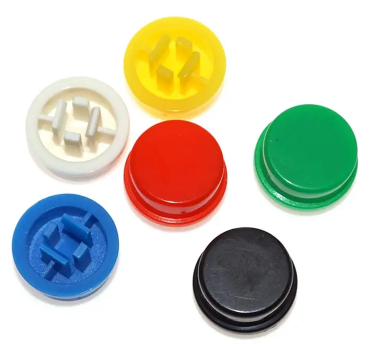

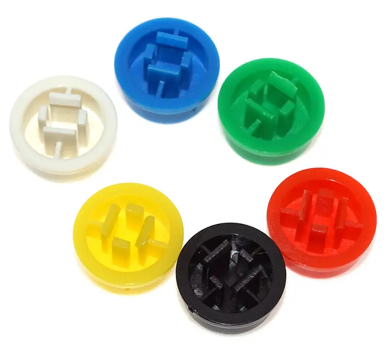

This is a tactile push button cap designed for push button with the dimension 12*12*7.3 mm in different colors.
Description
1. The rated range: 50 ma 12 VDC
2. Contact resistance: 50 m Ω Max (initial)
3. The insulation resistance: 100 m Ω minDC (250 v)
4. The compressive strength: AC250V (50/60 hz for 1 minute)
5. Mechanical life: 100000 cycles
6. The environment temperature: 25 ° ~ + 105 °
7. The operating strength: 180/250 (plus or minus 30 gf)
8. 12 * 12 * 7.3 round convex type
2. Contact resistance: 50 m Ω Max (initial)
3. The insulation resistance: 100 m Ω minDC (250 v)
4. The compressive strength: AC250V (50/60 hz for 1 minute)
5. Mechanical life: 100000 cycles
6. The environment temperature: 25 ° ~ + 105 °
7. The operating strength: 180/250 (plus or minus 30 gf)
8. 12 * 12 * 7.3 round convex type
