Description

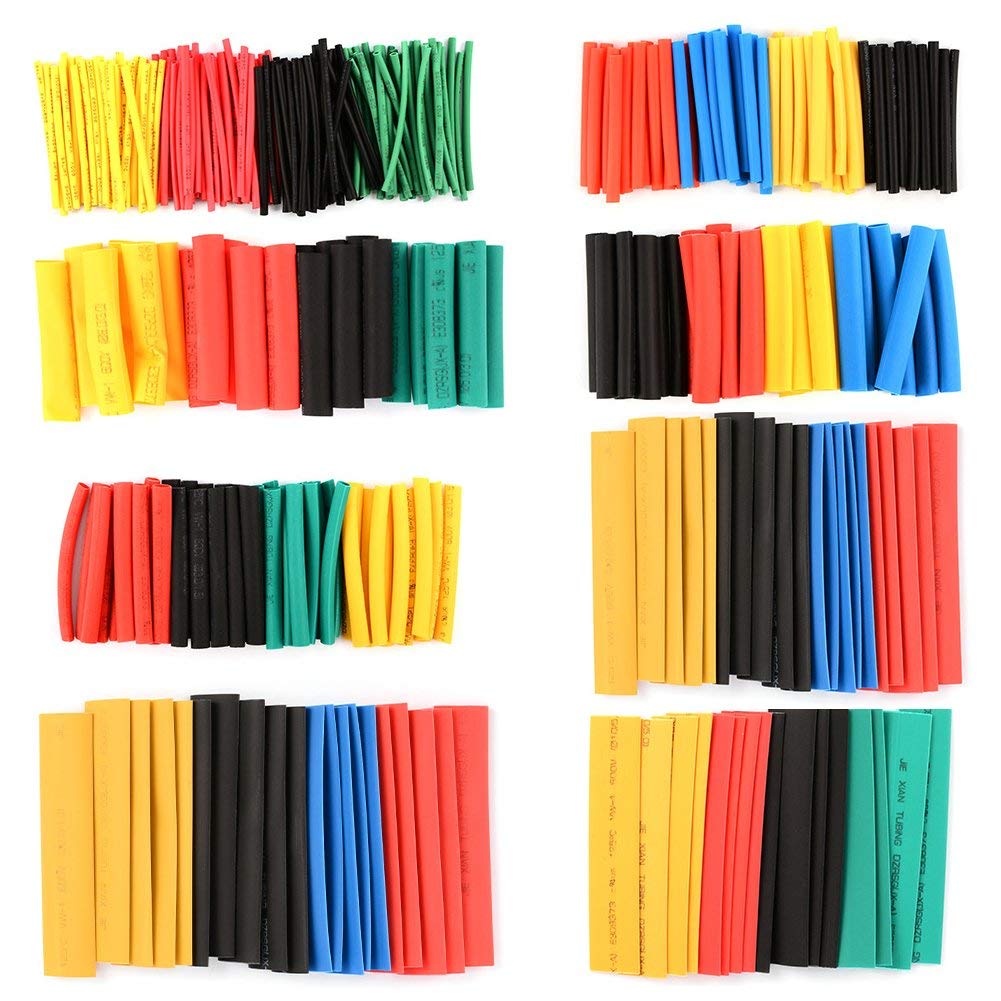

328pcs Assorted Heat Shrink Tubes
This is a huge collection of most useful heat shrink tubing, 8 Specifications, 5 colors, 328 pieces total.
Supplied internal diameter : 1.0mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm , 8.0mm, 10.0mm, 14.0mm minimum,
Fully shrunk internal diameter : 0.5mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 7.0mm maximum
Supplied Internal Diameter: 1.0mm, 2.0mm, 3.0mm, 4.0mm,6.0mm, 8.0mm, 10.0mm, 14.0mm
Color: Black,Red,Yellow,Blue,Green
Material: Polyolefin
Shrinkage Ratio: 2:1 (will maximum shrink to 1/2 its supplied diameter)
Operating Temperature: -55°C to +125°C
Minimum Shrinkage Temp: +70°C
Full Shrinkage Temp: +110°C Maximum
Tensile Strength: 10.4 Mpa
Dielectric Strength:15 kV/mm
Flammability: Flame Retardant
Package Includes :
Quantity x Supplied internal diameter x Single length
120pcs x φ1.0 x 40mm (Yellow,Black,Red,Green)
60pcs x φ2.0 x 40mm (Yellow,Black,Red,Blue)
32pcs x φ3.0 x 40mm (Yellow,Black,Red,Green)
32pcs x φ4.0 x 40mm (Yellow,Black,Red,Blue)
32pcs x φ6.0 x 40mm (Yellow,Black,Red,Green)
20pcs x φ8.0 x 80mm (Yellow,Black,Red,Blue)
16pcs x φ10.0 x 80mm (Yellow,Black,Red,Green)
16pcs x φ14.0 x 80mm (Yellow,Black,Red,Blue)
