Description

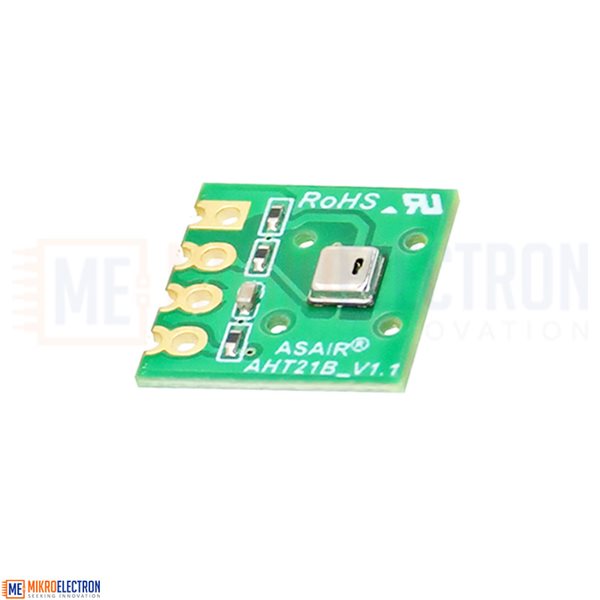

AHT21B V1.1 digital temperature and humidity sensor module AHT21B I2C has fast communication response and strong anti-interference
General Information:
AHT21B is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor component and a standard on-chip temperature sensor component. Its performance has been greatly improved and even beyond the reliability level of the previous generation of sensor, which make it more stable in the harsh conditions. Each sensor had been rigorously calibrated and tested. Due to the improvement and miniaturization of the sensors, it is more cost-effective.
Applications:
The AHT21B is a kind of sensor of humidity and temperature with digital I²C output. It can be applied to HVAC, dehumidifier, testing and inspection equipment, consumer products,
automobiles, automatic control, data loggers, weather stations, home appliances, humidity control, medical and other application fields which need to detect and control temperature
and humidity.
Model: aht21b
Power supply voltage: DC: 2-5.5v
Measurement range: temperature: – 40 ~ + 120 ° ℃ humidity: 0 ~ 100% RH
Measurement accuracy: temperature: soil 0.3 ° ℃
Humidity: ± 2% RH (25 ° ℃ )
Temperature: 0.01 ℃
Humidity: 0.024% RH
Output signal: 12C signal
Package: 1x AHT21
Note:
- Relative humidity and temperature output
- Superior sensor performance, typical accuracy RH: ±3%, T: ±0.5°C
- Fully calibrated and processed digital output, I²C protocol
- Wide voltage support 2.2 to 5.5V DC
- Excellent long-term stability
- Fast-response and anti-interference capability
