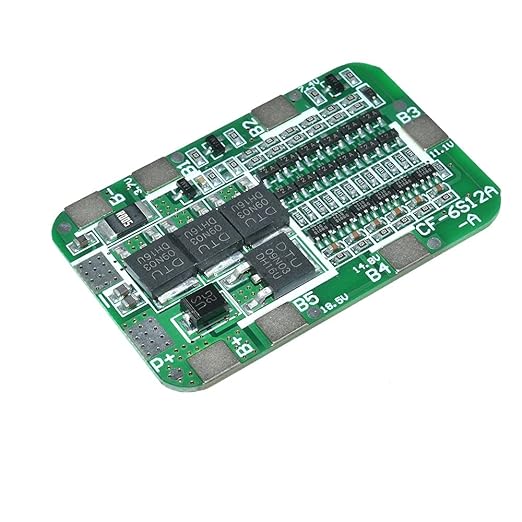

Description
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse
Features:
- Charging Voltage: 25.2V

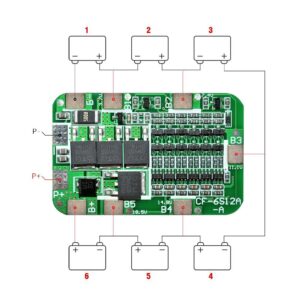

- Suitable for 6S 21.6V 22.2V 25.2V Li-ion Battery
- Overcharge Detection Voltage: 4.28±0.025v
- Overdischarge Detection Voltage: 2.55±0.08v
- Overdischarge detection delay: 0.1S
- Charging Current (max): 15A
- Instant Discharge Current: 25A
- Size: approx.50*30*2mm
- Lampshift maximum discharge current: 12A
- Instantaneous discharge current: 25A
- Overcharge protection delay: 0.1S
- Overcharge release voltage: 4.08 ± 0.05V
- Over discharge detection voltage: 2.55 ± 0.08V
- The overdischarge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Short circuit detection delay: 250uS
- Short circuit protection Release condition: disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Working current: ≤30uA
- Sleep current (battery over discharge) ≤10uA
- Temperature range: -30 / + 80
