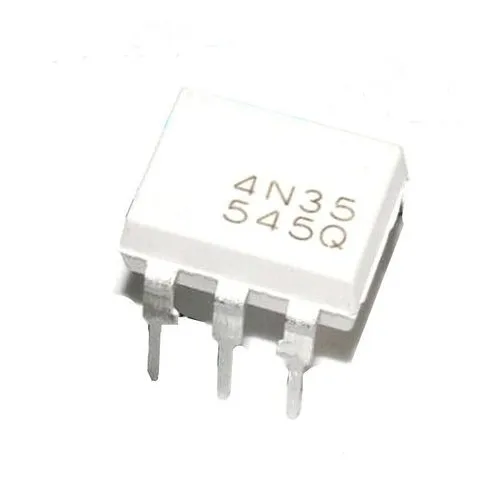

4n35 DIP6 FSC Optocouplers Phototransistor 30V IC OPT23, R32

Description

This data sheet presents five families of Vishay Industry standard Single Channel Phototransistor Couplers.These families include the 4N35/ 4N36/ 4N37/4N38 couplers. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor.

Features

• Isolation Test Voltage 5300 VRMS
• Interfaces with common logic families
• Input-output coupling capacitance < 0.5 pF
• Industry Standard Dual-in line 6-pin package
• Lead-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC

Applications

• AC mains detection
• Reed relay driving
• Switch mode power supply feedback
• Telephone ring detection
• Logic ground isolation
• Logic coupling with high frequency noise rejection
