Description

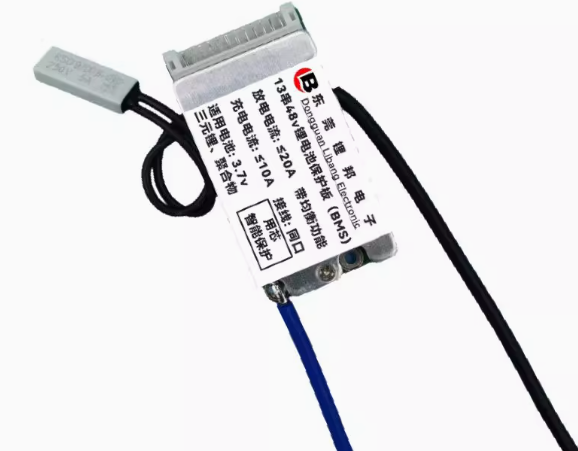

The 48V BMS (Battery Management System) 13S 20A is specifically designed for a 48V lithium battery pack with 13 cells in series (13S), often used in applications like electric bicycles
Specifications:
Continuous current limit of discharge: 20A ± 2A
Discharge protection current limit: 22A ± 2A
Charging limit voltage: 54.6V
Continuous charging current: 20A ± 2A
Current limit of charging protection: 40A ± 2A
Overcharge protection voltage: 4.25V ± 0.05V
Overcharge release voltage: 4.15V ± 0.1V
Overdischarge protection voltage: 2.8V ± 0.025V
Overdischarge release voltage: 3.0V ± 0.05V
Detail
