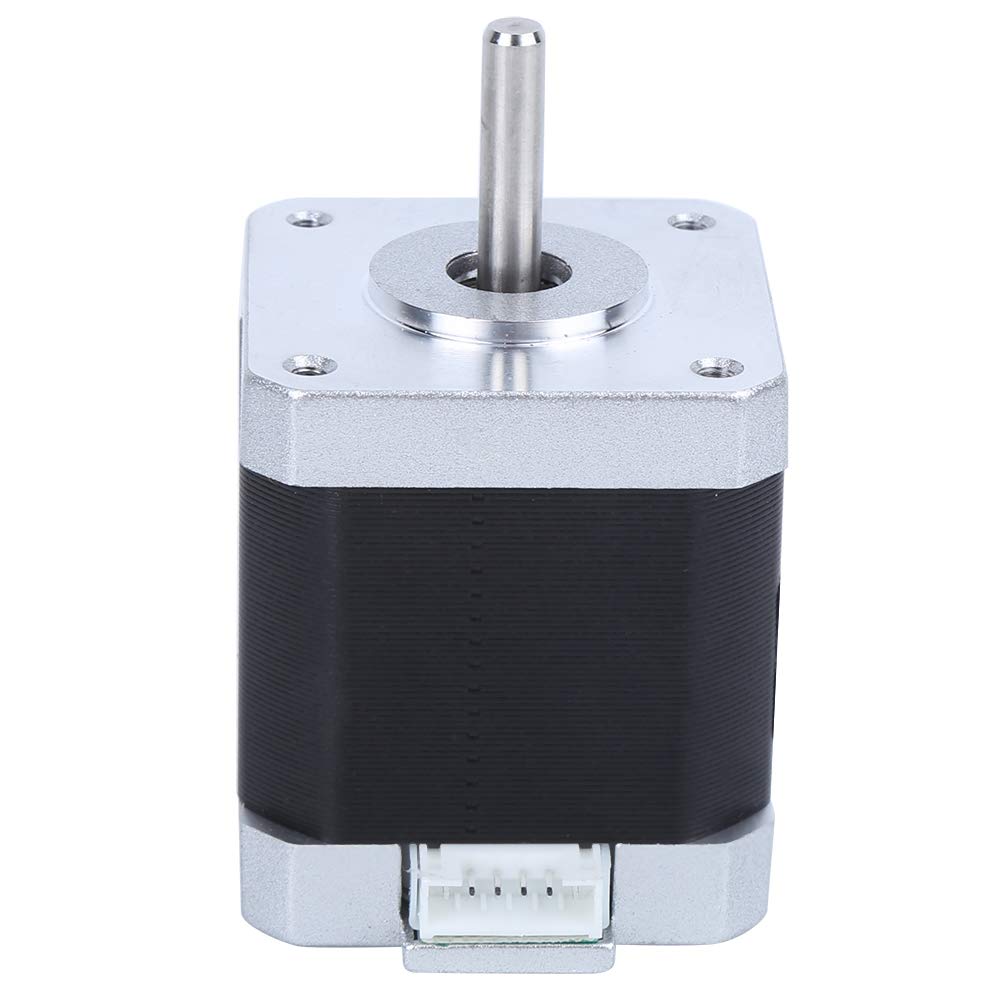

4-lead Nema 17 Stepper Motor 17HS4401 COM56, R24

Description

The motors have twice the step accuracy of a typical motor. These motors have been designed to use with the various RepRap printer build types.

Specifications

• Step Angle (degrees): 1.8
• 2 Phase
• Rated Voltage: 3.27V
• Rated Current: 1.68A
• Holding Torque: 450 NM
• 5mm Diameter Drive Shaft
• Winding resistance: 1.95 Ohm
• Maximum Detent Torque: 0.015 NM
• Total inertia (kg.mm): 57g.m.m
