Description
PTC heaters bring a wide variety of benefits to the automotive and aerospace industries. These systems provide compact, lightweight means to heat the interiors of planes and vehicles. Anything from seat and steering wheel heaters to plane de-icers will likely use a PTC heater. As the temperature increases, the electrical resistance of the material also increases, thus limiting the current flow. Simply put, the material allows current to pass when it’s cold and restricts current to flow as the threshold temperature increases.
Specifications
Rated Power:300W
Rated Voltage:220V(the power line does not distinguish between positive and negative)

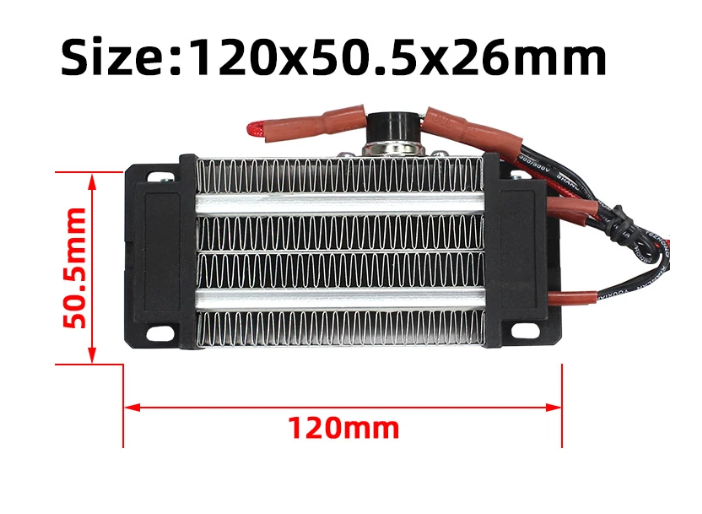

Dimension(L x W x H):120 x 50.5 x 26mm
Mounting Pitch:100 x 43mm
Mounting Hole Size：8 x 4mm
heat material: PTC Thermistor
heat methods: heat radiation by air flow
lead wire: silicone high temperature line
the length of lead wires : 200mm
the length of bare wires : 10mm
remarks: with 150 degrees normally closed thermostat protector
main used in: Electric Heater /Air Conditioner/equipment/Humidifier/Air Purifier/Clothes Dryer/Dehumidifier

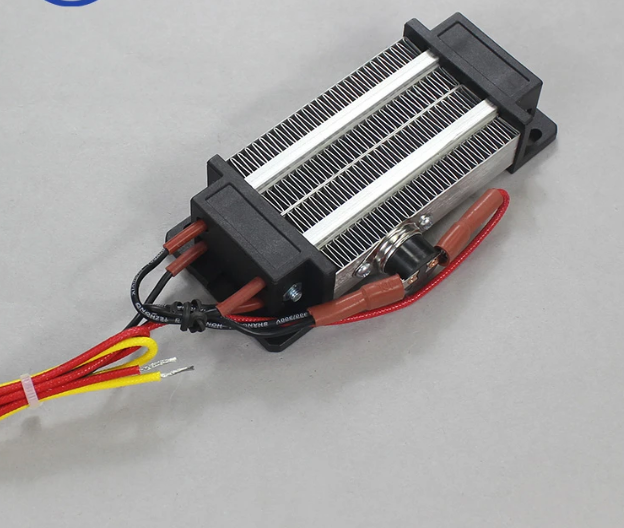

Package includes: 1X 300W 220V 120x50mm Surface Insulated Thermostatic PTC incubator heater
