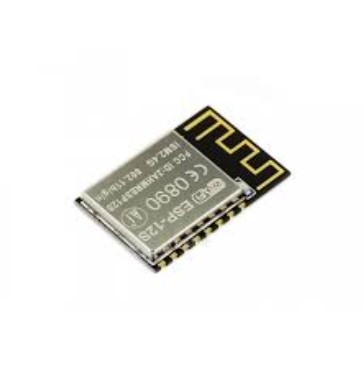

ESP-12S ESP8266 Serial WIFI Transceiver Wireless Module COM31, R28

Fr5,000

The ESP-12S WIFI module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers. The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WIFI functionality into other systems.

In stock

SKU: WRL24689 Category:

Description

The ESP-12S WIFI module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers. The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WIFI functionality into other systems.

The ESP8266 is a complete and self-contained WIFI network solution that can operate independently or as a slave running on other host MCUs. The ESP8266 is capable of booting directly from an external flash memory when it is powered by an application and is the only application processor in the device. The built-in cache helps improve system performance and reduce memory requirements. In another case, the ESP8266 is responsible for wireless Internet access. When it comes to the task of the WIFI adapter, it can be added to any micro controller-based design. The connection is simple and easy, just by SPI / SDIO interface or I2C / UART port. Just fine. The ESP8266’s powerful on-chip processing and storage capabilities allow it to integrate sensors and other application-specific devices through the GPIO port, minimizing system resources during minimal up-front development and operation.

Features

  • The smallest 802.11b/g/n Wi-Fi SOC module
  • Low power 32-bit CPU, can also serve as the application processor
  •  Up to 160MHz clock speed
  •  Built-in 10 bit high precision ADC
  •  Supports UART/GPIO/IIC/PWM/ADC
  •  SMD-16 package for easy welding
  •  Integrated Wi-Fi MAC/BB/RF/PA/LNA
  •  Support multiple sleep patterns. Deep sleep current as low as 20uA
  • UART baud rate up to 4Mbps
  •  Embedded LWIP protocol stack
  • Supports STA/AP/STA + AP operation mode
  • Support Smart Config/Air Kiss technology
  •  Supports remote firmware upgrade (FOTA)
  •  General AT commands can be used quickly
  •  Support for the two development, integration of windows, Linux development environment

Product Specification:

Module Model ESP-12S
Package SMD16
Size 24*16*3(±0.2)mm
Certification FCC/CE
SPI Flash Default 32Mbit
Interface UART/GPIO/ADC/PWM
IO Port 9
UART Baud rate Support 300 ~ 4608000 bps ，Default 115200 bps
Frequency Range 2412 ~ 2484MHz
Antenna PCB Antenna
Transmit Power
802.11b: 16±2 dBm (@11Mbps)
802.11g: 14±2 dBm (@54Mbps)
802.11n: 13±2 dBm (@HT20, MCS7)
Receiving Sensitivity
CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBmPower
(Typical Values)
Continuous Transmission=>Average：~71mA，Peak：500mAModem Sleep: ~20mA
Light Sleep: ~2mA
Deep Sleep: ~0.02mA
Security WEP/WPA-PSK/WPA2-PSK
Power Supply Voltage 3.0V ~ 3.6V，Typical 3.3V，Current >500mAOperating
Temperature
-20 ℃ ~ 85 ℃
Storage Environment -40 ℃ ~ 85 ℃ ,
