Description

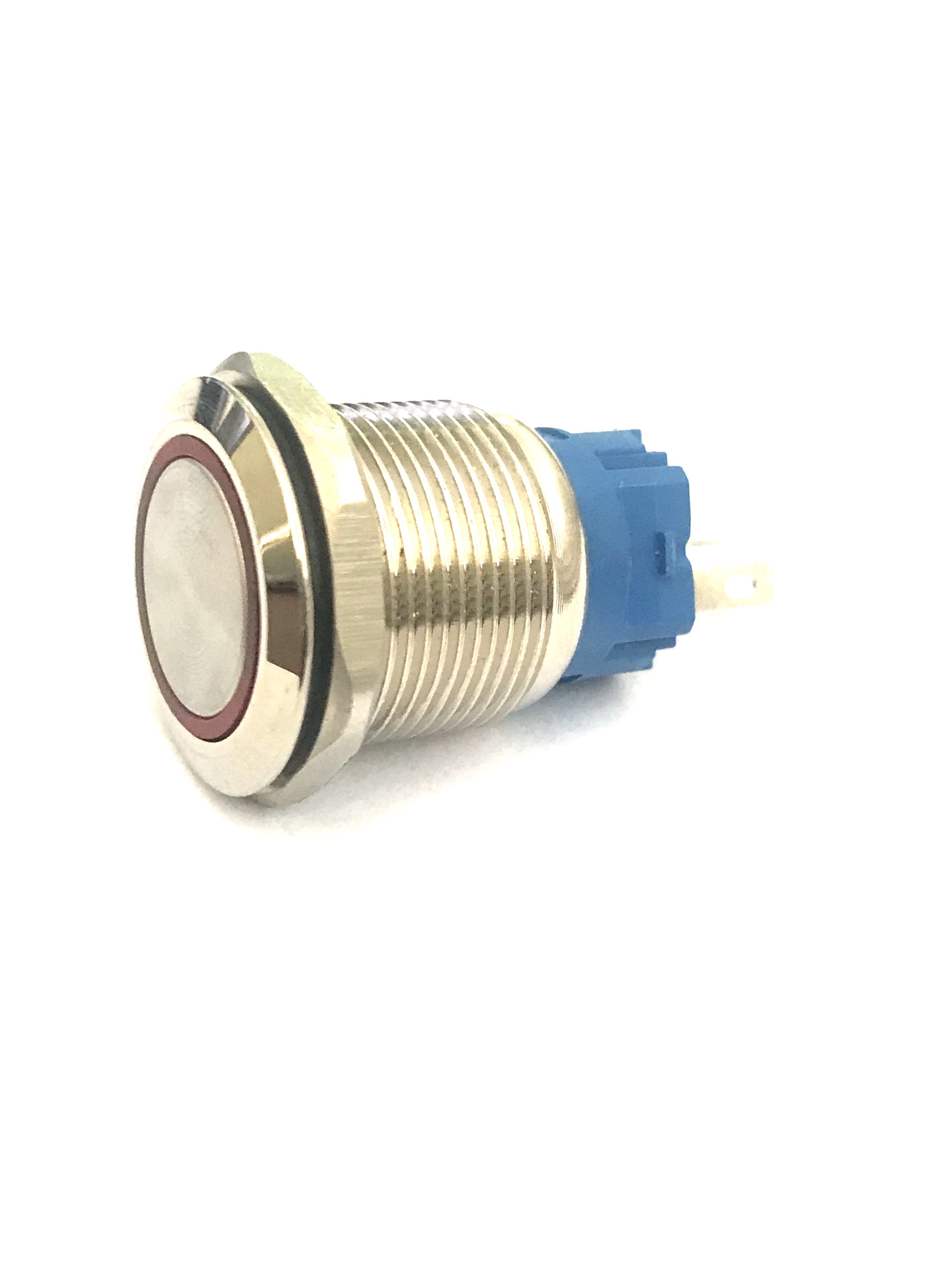

Momentary reset push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers .
Momentary Type of Push button switch(It will connect when you tighten it, and when the hand is released, it will restart).
Product specifications:
- Item Type: Switches
- Switch Type: Push Button Switch
- Model Number: 19mm Push Button Switch
- Features: Momentary Lighting
- Material: Aluminium alloy
- Brand Name: EARUELETRIC
- Item Type: Switches
- Voltage: 12V-24V
- Degree of Protection:
- Minimum Applicable Load: 5V AC/DC, 1mA
- Contact material: Silver plated
- Operating Temperature: -25°C to +55°C
- Operating Humidity: 45 to 85% RH
- Contact Resistance: 50MΩ maximum
- Insulation Resistance: 100MΩ minimum (500V DC megger)
- Electrical Life: 100,000 operations minimum (at full rated load)
Widely used in various additional electric equipment, relay, inside & outside the car(Such as critical lights, foglight, dome light) or any circuit controls — any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoor use.
Momentary (self-reset) vs Latching (self-lock)
This momentary push button is different from Latching push button in this way:
How to Connect
Package includes: 1×Momentary Self-reset 19mm 12-24v push button flat round
