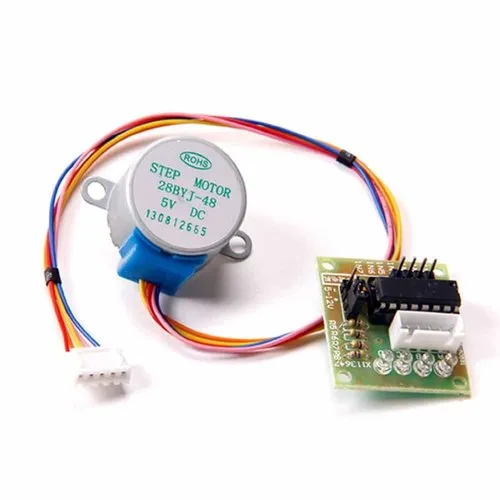

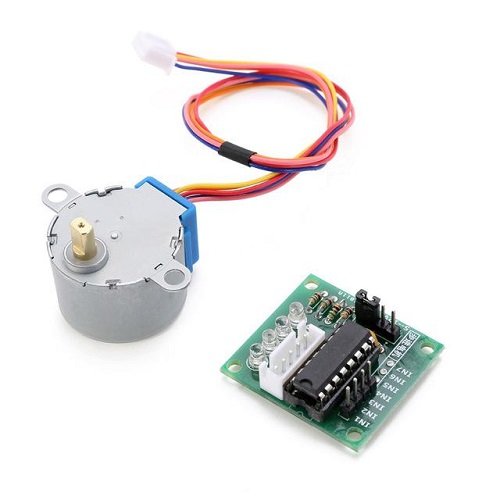

28BYJ-48 12V Stepper Motor + ULN2003 Controller Board COM41 ,R12

Description

12V Stepper Motor  is a motor controlled by a series of electromagnetic coils. The center shaft has a series of magnets mounted on it, and the coils surrounding the shaft are alternately given current or not, creating magnetic fields which repulse or attract the magnets on the shaft, causing the motor to rotate.

Features:

Rated voltage: 12 VDC
Number of Phase 4
Speed Variation Ratio 1/64
Stride Angle 5.625° /64
Pull in torque 300 gf.cm

Getting started with 12V Stepper Motor  and Arduino UNO

Step1: Hardware required

• Arduino UNO
• 12v stepper motor and Drive
• Male to female jumper wire

Step2: Connecting the Hardware















      Arduino UNO                       Stepper motor

Pin 8                                             IN 1

Pin 9                                              IN2

Pin 10                                            IN3

Pin11                                              IN4

GND                                               GND

5V                                                    VCC



If you need powerfully Output connected vcc to 12V

Step3: Making the sketch and Testing

Serial monitor

Library and Code go to :

1.Sketch

2.Include Library

3.Manage Libraries –>>>> 28BYJ-48
