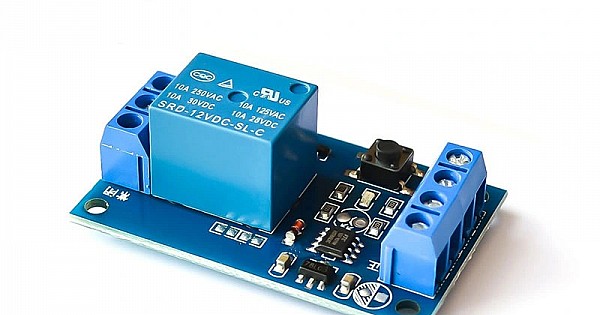

Description
Bistable relays are used to switch electrical circuits by impulse command, especially for lighting control in ordinary houses, warehouses, production halls and other buildings.
Key Specifications
- Power Supply Voltage: 12VDC
- Input Signal: Single push button (active low or high depending on the module)
- Contact Configuration: Typically a single pole, double throw (SPDT)
- Switching Voltage/Current: Depending on the module, could be around 250VAC/10A or 30VDC/10A
- Bistable Operation: Relay stays in the activated state until triggered again
- LED Indicator (Optional): May include an LED to visually show relay status
Applications
- Momentary switch control for devices like lights, motors, or solenoids
- Latching mechanisms where a single button press toggles a state
- Interfacing with microcontrollers for advanced control applications.
