Description

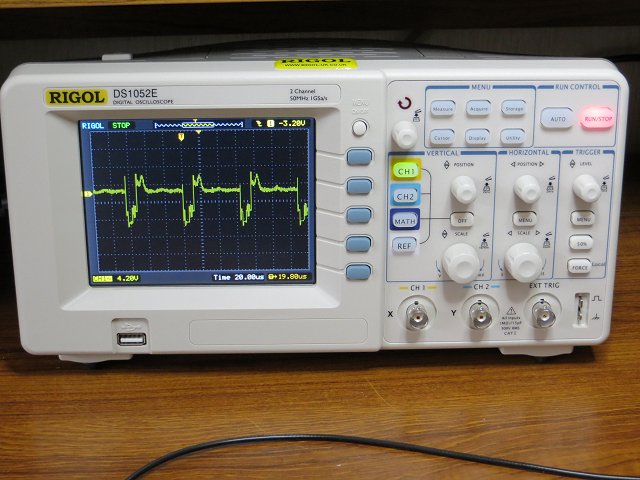

This is the DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard.
Features:
- Band width: 50MHz
- Channel number: Double channel + external trigger
- Real-time sampling rate: 1 GSa/s (single channel), 500 MSa/s (double channel)
- Equivalent sampling rate: 10GSa/s
- Rising time: 7 ns
- Memory depth / Channel pattern:
- Single channel: Sampling rate 1 GSa/s, Ordinary memory: 16 kpts, Long memory: N.A.
- Single channel: Sampling rate 500 Msa/s or is lower, ordinary memory: 16 kpts, long memory: 1 Mpts
- Double channel: Sampling rate 500 Msa/s or is lower, ordinary memory: 8 kpts, long memory: 512 kpts
- Time base scope: 5 ns/div~50 s/div
- Burst mode: The border, the video frequency, the pulse width, the slope, take turn
- Vertical resolution: 8 bits
- Vertical sensitivity 2 mV/div ∼ 10 V/div
- Biggest input: All Input 1MΩ–15 pF 300 Vrms Max CATI
- Trundle range : 500 ms/div ∼ 50 s/div
- Cursor survey: Manual, tracing, automatic sizing
- Mathematics operation +, -, *, FFT
- Internal memory: 10 groups of profiles, 10 groups establish
- U takes inventory Chu: The bitmap saves, CSV saves, the profile saves, establishment memory
- Connection: USB Device, USB Host, RS-232, P/F Out
- Demonstrated: 5.6 inch 64k color TFT liquid-crystal display
- Power source: 100 ∼ 240 VACRMS,45 ∼ 440Hz, CAT II,50 VA maximum value
