Description

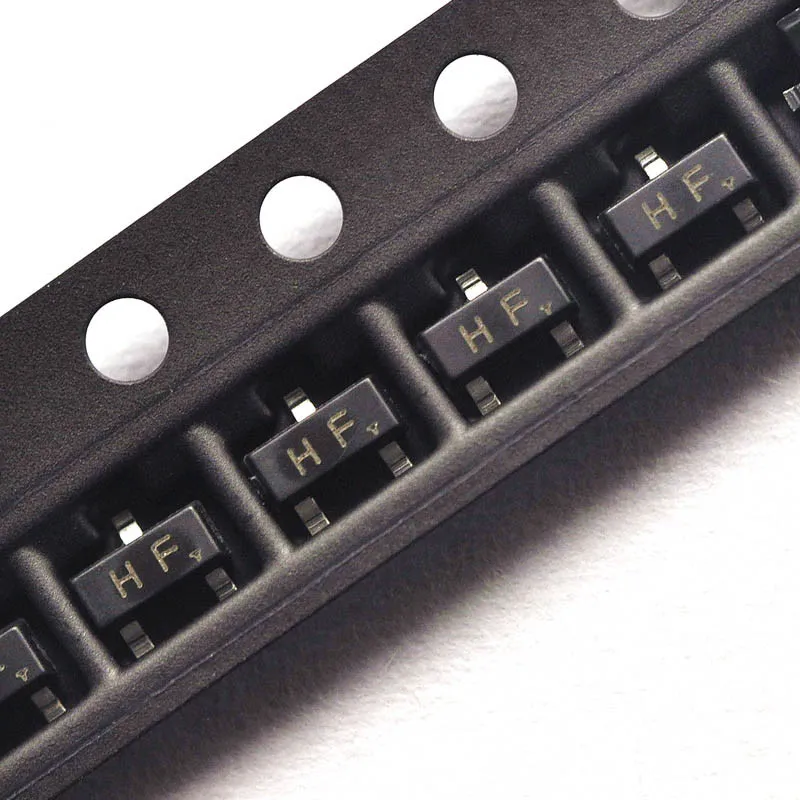

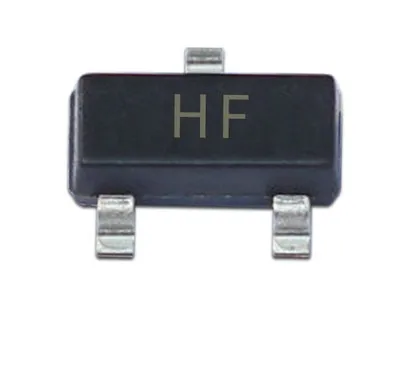

C1815 is a general purpose NPN bipolar transistor with a maximum voltage of 60 V and maximum current of 150 mA.The device is designed for Audio Frequency General Purpose Amplifier Applications.
Features:
- Maximum collector-emitter voltage (VCE0): 50 V
- Maximum emitter-base voltage (VEB0) : 5 V
- Collector current (ICM) : 0.15 mA
- Collector-base voltage (VCBO) : 60 V
- Total Power dissipation (Pt) : 0.4 W (Tamb=25 °C)
- Current-Gain-Bandwidth (ftotal): 80MHz
